Product no.: 53487

Thermal imaging camera Reveal XR 9Hz

$ 530.00 incl. VAT, plus shipping costs
too expensive?
long-term
Product not available anymore + lead time

Product description

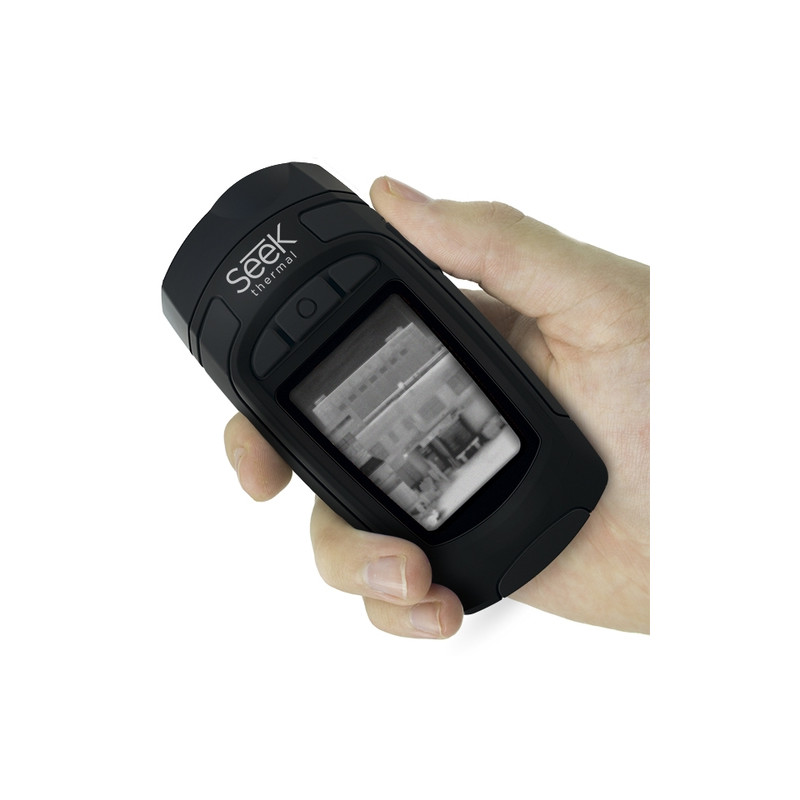

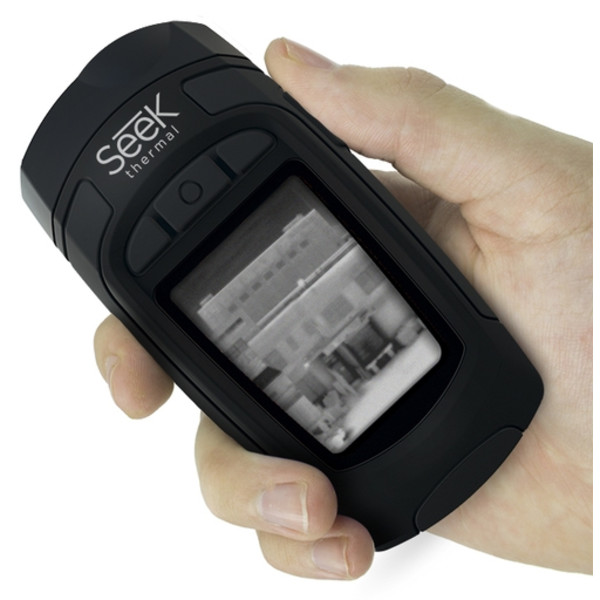

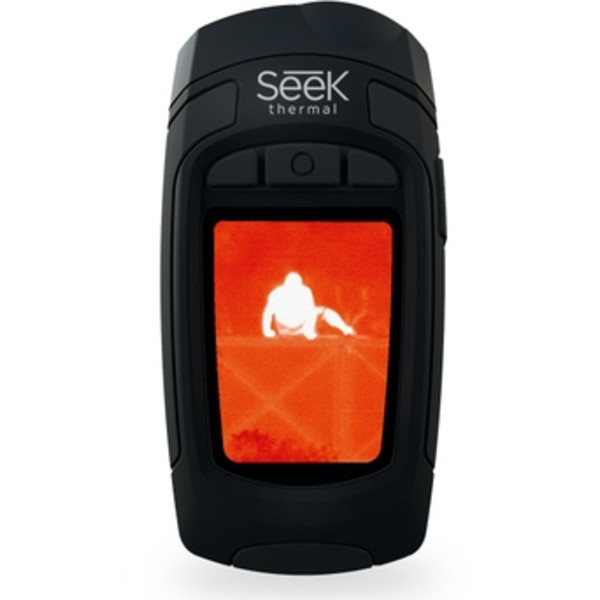

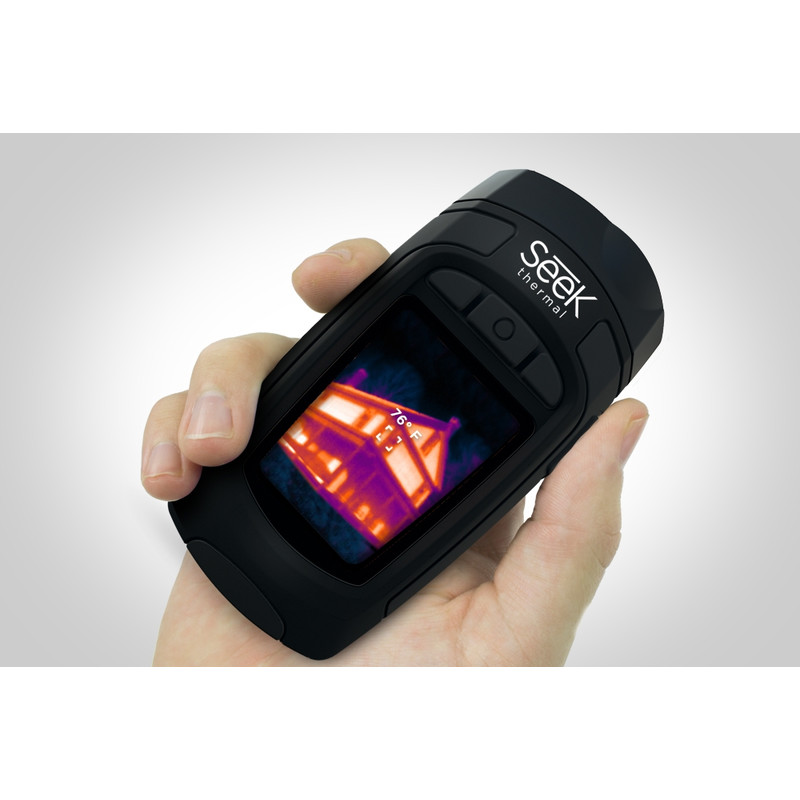

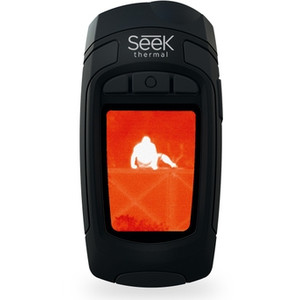

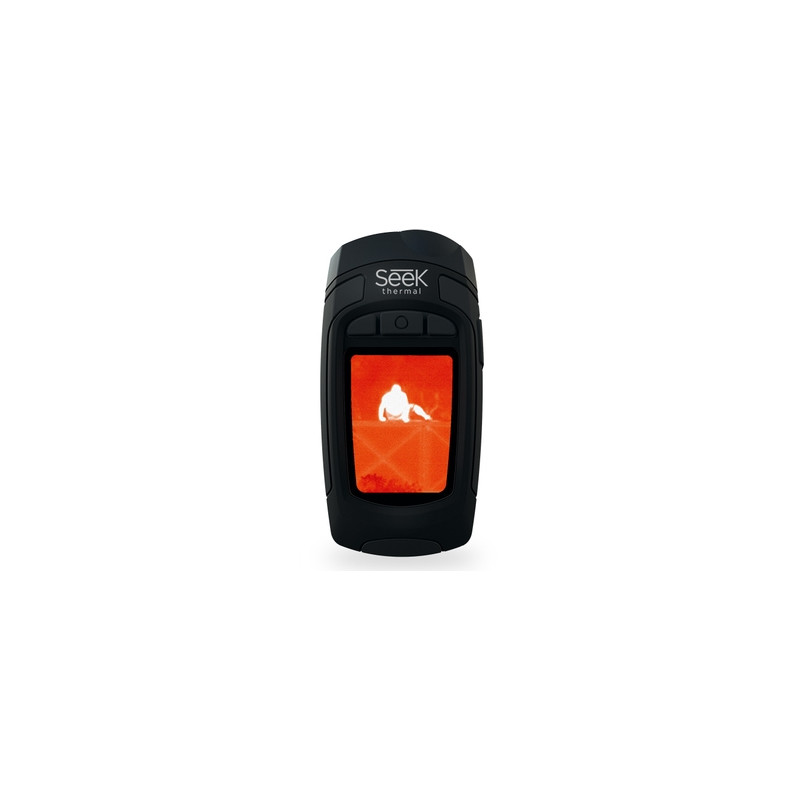

Seek Thermal Reveal XR
Long Range Thermal Imaging Camera with a 20-degree Narrow Field of View

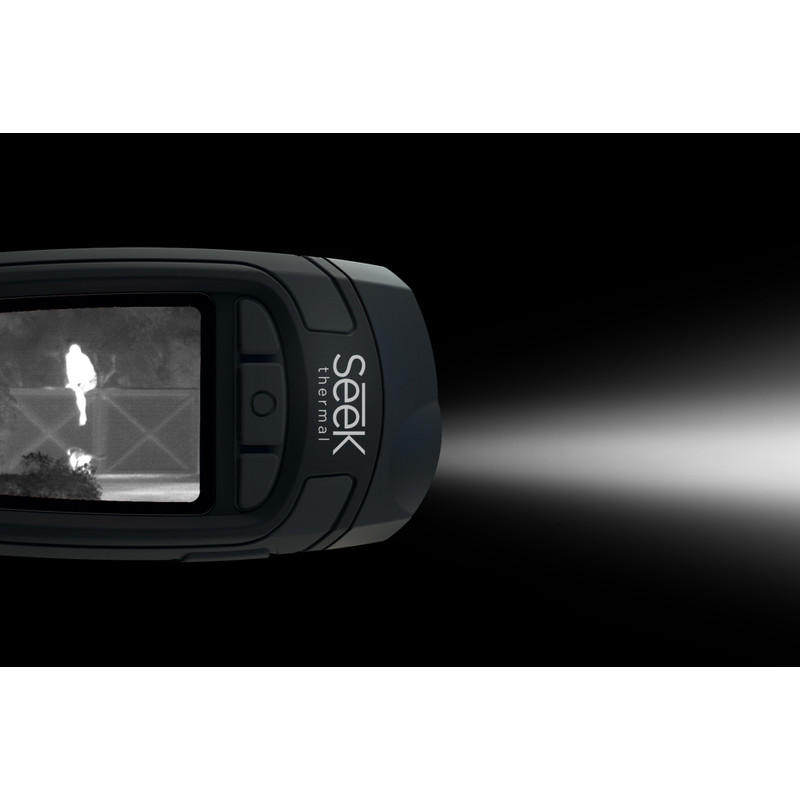

Seek is proud to announce its newest line of all-in-one durable devices – RevealXR. RevealXR boasts the same accurate thermal sensor at 206x156 for infrared detection and powerful 300-Lumen LED flashlight to gain visible light at a moments notice. Its intuitive, single-handed interface and button control makes it ideal for security, safety and hunting in dark conditions. Its fixed focus narrows in at distances of 900 feet where the eye can’t see in dark conditions - and has a dedicated flashlight control for quick detection as needed.

Powerful and rugged in design, the standalone Seek RevealXR handheld imager combines powerful thermal insight with a 206x156 sensor, rechargeable battery lasting more than 10 hours, and a large color display in one durable device. A library of 7 color palettes lets your eye and mind select high contrast or grayscale. The MicroSD card allows you to capture, store, and transfer images via USB cable to your device.

Seek A New Advantage

By measuring very small relative temperature differences, invisible energy patterns are converted by our thermal imager into clear, visible images that the human eye can’t always see. Since the energy we sense it not impacted by visible light, our thermal imagers can be used in both daylight and night conditions at much longer distances.

Hunting & Outdoors
The playing field is often dictated by light conditions and weather. With a thermal imaging camera, you can scout terrain in total darkness, accurately track during fog or dense conditions, and recover long after dusk sets in.

  • Accurately Scout Terrain
  • Track Game
  • Recover with a New Advantage after Dusk
  • Stay Safe in the Blind


Safety & Security
Keep an eye on things – even things your eyes can’t see. A visual assessment using Seek Thermal Imaging Cameras has unique benefits especially at night and long distances. Thermal imaging detects elevated temperatures, which are indicative of objects radiating energy (or heat). This makes it easier to discover and detect at night where lighting provides unwanted attention:

  • Law Enforcement
  • Night Security
  • Search & Rescue
  • Land Surveillance and Border Protection
  • Public Safety & Tactical Support
  • Safeguard Corporate Facilities, Factories & Warehouses, Government Sites, or Residential Property

Specifications

Capacity


Type of build
Display screen
Technology
Thermal imaging camera
Magnification
1
Detection distance (m)
275
Sensor resolution (Pixel)
206x156
Image display
Different versions
Image cycle rate (Hz)
< 9

Special features


Infrared illuminator
-
Digital imaging
yes
Video connection
-
Headmount
-
Day-night-system
yes
Splash-proof
yes
Threaded tripod connector
-
ancillary lenses available
no

Field of view


True field of view (°)
20
Field of view at 100 m (m)
35

Area of application


Object protection & observation
yes
Hunting & and nature observation
yes
Navigation & Fishing
yes
Cave exploration & Camping
yes

General


Colour
black
Length (mm)
127
Width (mm)
61
Height (mm)
31
Weight (g)
180
Series
Reveal

Miscellaneous


Battery type
Specific to manufacturer
