Your partner for astronomy
Telescopes > TS Optics > Photon > TS Optics Telescope N 203/800 Photon OTA
Product no.: 57997

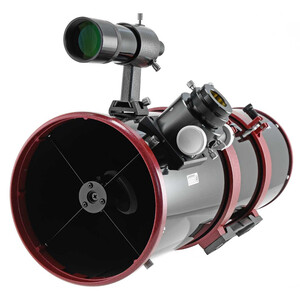

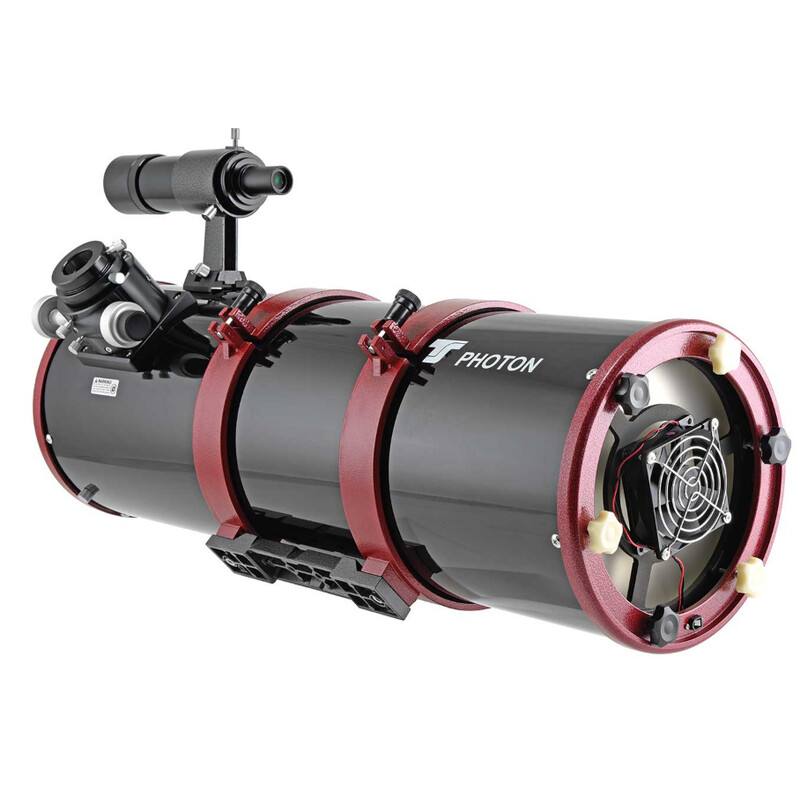

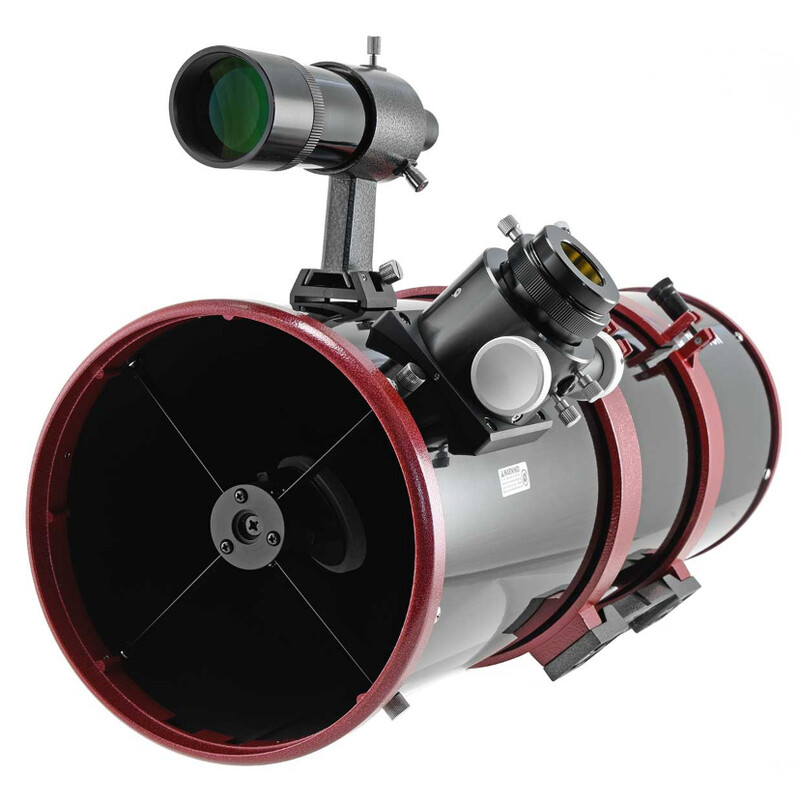

Telescope N 203/800 Photon OTA

$ 820.00 incl. VAT plus shipping costs
too expensive?
short-term
ready for shipping in 3-7 days + lead time

No delivery possible before Christmas. Order a voucher coupon!


Product description

More about the series Photon...

The N 203/800 optics are incredibly high-speed and, therefore, ideally suited to astrophotography! You require a significantly shorter exposure time comparted to a system with a higher focal length. With its optional coma corrector, this Newtonian turns into an real astrograph.

Due to its design, the Newtonian telescope produces images with no colour errors. Unlike other telescope designs, where a lot of money needs to be invested in the lenses to minimise these errors.

With an 8 inch (approx. 203 millimetre) aperture, visual observations of nebulae and galaxies are a great pleasure too. The supplied extension tubes ensure the ability to reach the correct focal position.

An integrated fan provides fast cooling to the ambient temperature.

An 8-inch model is also still relatively easy to transport and only requires a medium-sized mount.

The working distance from the M48 thread is 55 mm. Using a T-ring automatically sets the correct distance for astrophotography using DSLR cameras.

TS Optics is a brand of Teleskop-Service.

It not only matters which telescope you buy but also where you buy it. Our additional services:

  • We are a leading telescope dealer and know the devices we sell. Our customer service team will gladly help you after your purchase if you have problems with assembly or operation.
  • We provide a copy of the 80-page Telescope ABC beginners handbook with every telescope.

Specifications

Optics


Type
Reflector
Type of build
Newton
Aperture (mm)
203
Focal length (mm)
800
Aperture ratio (f/)
4
Resolving capacity
0,68
Limit value (mag)
13,3
Light gathering capacity
840
Max. useful magnification
406
Tube weight (kg)
8,4
Tube material
Steel
Tube length (mm)
730
tube diameter (mm)
230
Tube construction
Full tube

Reflector


Main mirror´s construction
parabolic
Secondary mirror obstruction
35
Secondary mirror diameter (mm)
70
Ventilation for central mirror
yes
reflectivity
94
Adjustable
yes
protective layer
Quartz

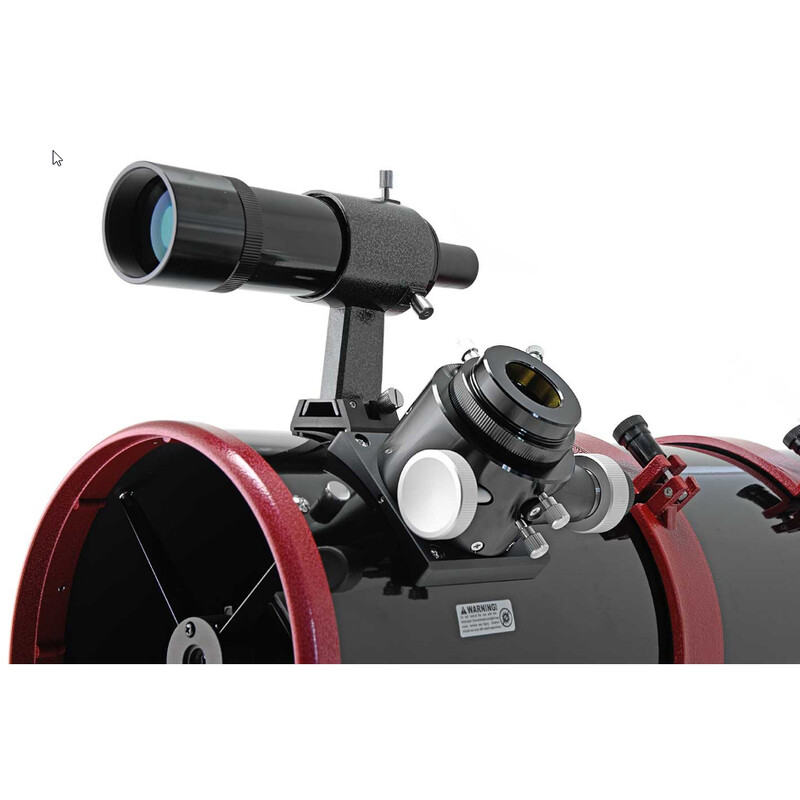

Focuser


Type of build
Crayford
Connection ( to eyepiece)
2
Gear reduction
1:10 fine focusing
Motorized
optional
Backfocus (mm)
55
Connecting threaded socket (camera-side)
M48

Mount


Type of build
OTA
Mounting type
no mount
GoTo control
no

Included accessories


Finder scope
8x50
Extension tubes
yes
Tube clamps
yes
Eyepiece adaptor
2" / 1.25"
Prism rail
Vixen-Style

General


Series
Photon

Area of application


Moon & Planets
yes
Nebulae & galaxies
yes
Nature Observation
no
Astrophotography
yes
Sun
no (Only with appropriate Sun filter)

Recommended for


Beginners
no
Advanced
yes
Observatories
no

Product safety

manufacturer: Teleskop-Service Ransburg GmbH, Von-Myra-Straße 8, 85599 Parsdorf, DE, www.teleskop-express.de

Recommended accessories

Workshop service (1)

Astroshop Collimation/adjustment Newtonian 8"-12"

$ 78.00*
Telescope accessories > Barlow & Erecting Lenses (3)

Omegon 3x Barlow lens, achromatic, 1.25"

$ 49.90*
Telescope accessories > Transport & storage (6)
Carry case

Artesky Carry case iOptron Tri-Pier

$ 103.00*
Telescope accessories > Other (8)

TS Optics Focus motor USB_Focus v3 Set Heavy

$ 342.00*
Eyepieces (4)
Eyepiece

Omegon LE Series Eyepiece, 12.5mm, 1.25''

$ 149.00*
Eyepieces (4)
Eyepiece

Omegon SWA 32mm, 2” eyepiece

$ 159.00*
Eyepieces > Other (5)
Reticle eyepieces

Omegon Reticle eyepieces Illuminated crosshair eyepiece, 12.5mm

$ 89.00*
Filters > Moon filters & Polarizing filters (4)
Filters

Omegon Filters Variable grey filter 1.25"

$ 39.90*
Filters > Nebulae filters (6)
Filters

Omegon Filters Nebula/ city light filter 1.25 ''

$ 39.90*
Filters > Other (2)
Filters

Omegon Filters Color filter set 1,25'' (6 pieces)

$ 69.00*
Astrophotography > Cameras (12)
Camera

Omegon Camera GUIDE 2000 C Color

$ 199.00*
Astrophotography > Camera adaptor (4)
Projection adapter

Omegon Camera adapter 1.25"

$ 24.90*
Astrophotography > Camera mounts (4)

Omegon Easypic Universal Smartphone Adapter

$ 99.00*
Astrophotography > Other (5)

TS Optics 1.0x2" coma corrector

$ 343.00*
Mounts & accessories (2)
Mount

Skywatcher Mount EQ6-R Pro SynScan GoTo

$ 2,080.00*
Observatories (1)

Omegon Tent observatory

$ 189.00*
Media (3)
Star chart

Omegon Star chart Planisphere

$ 14.90*
Outdoor (2)
Headlamp

Omegon LED headlamp

$ 13.90*
Globes & Maps (1)
Continental map

Oculum Verlag Sky Quality Map Europe

$ 17.90*
Solar Observation (1)
Solar Filters

Baader AstroSolar telescope solar filter ASTF 200mm

$ 152.00*
Maintenance & Cleaning > Lens cleaners (3)

Omegon 7-in-1 lens cleaning set

$ 19.90*
Maintenance & Cleaning > Other (2)

Omegon microfibre cleaning cloth 20cm x 20cm

$ 4.90*

*All prices include VAT plus shipping costs.

TS Optics Telescope N 203/800 Photon OTA

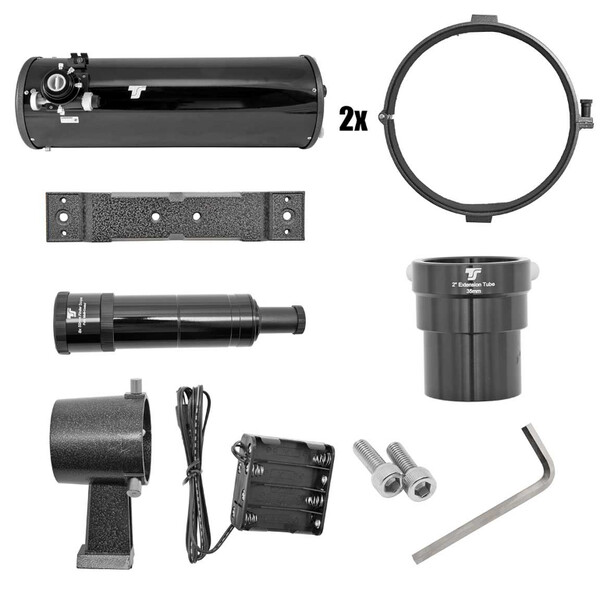

Includes
TS Optics Telescope N 203/800 Photon OTA

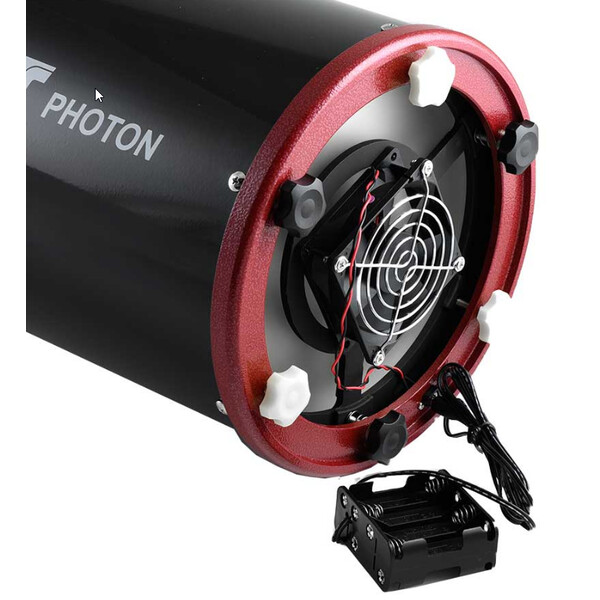

Main mirror ventilation

TS Optics Telescope N 203/800 Photon OTA

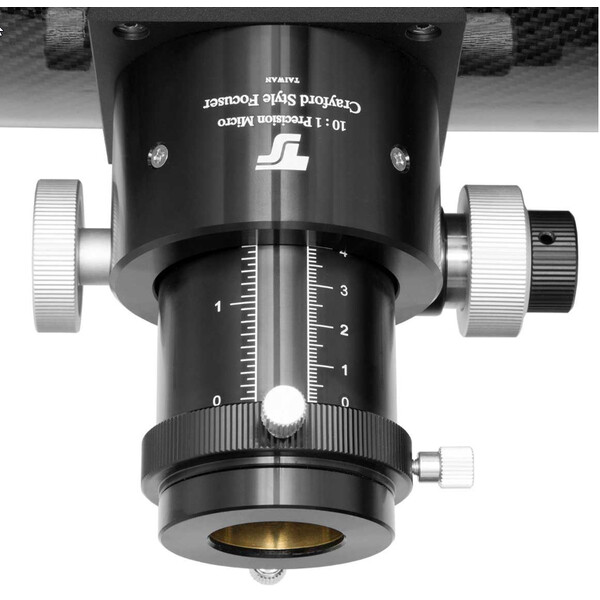

Drawtube
