Telescopes > Omegon > Pro APO > Omegon Apochromatic refractor Pro APO AP 76/342 Triplet ED OTA
Product no.: 69473

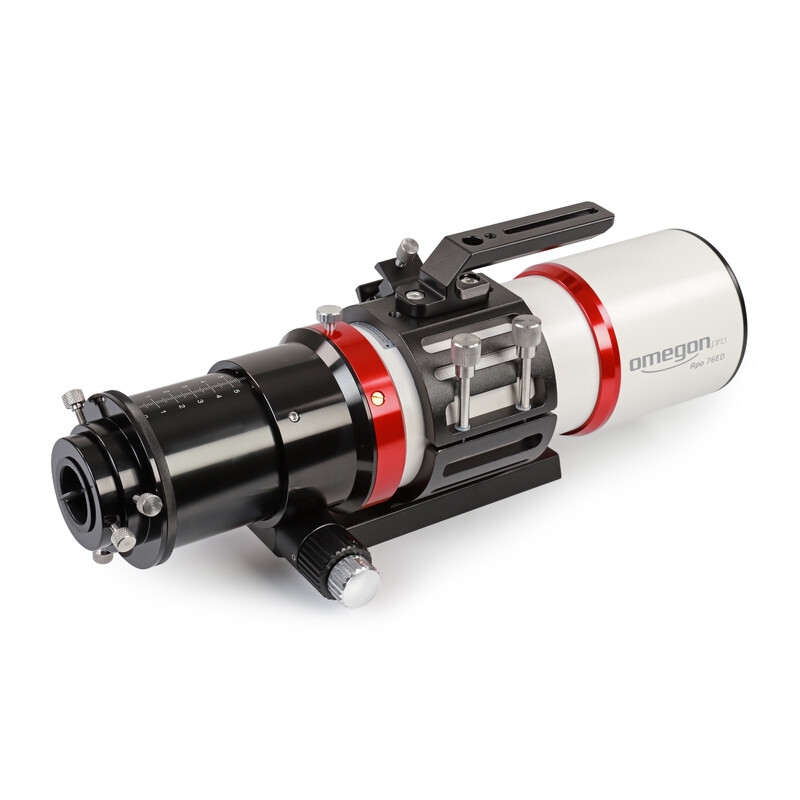

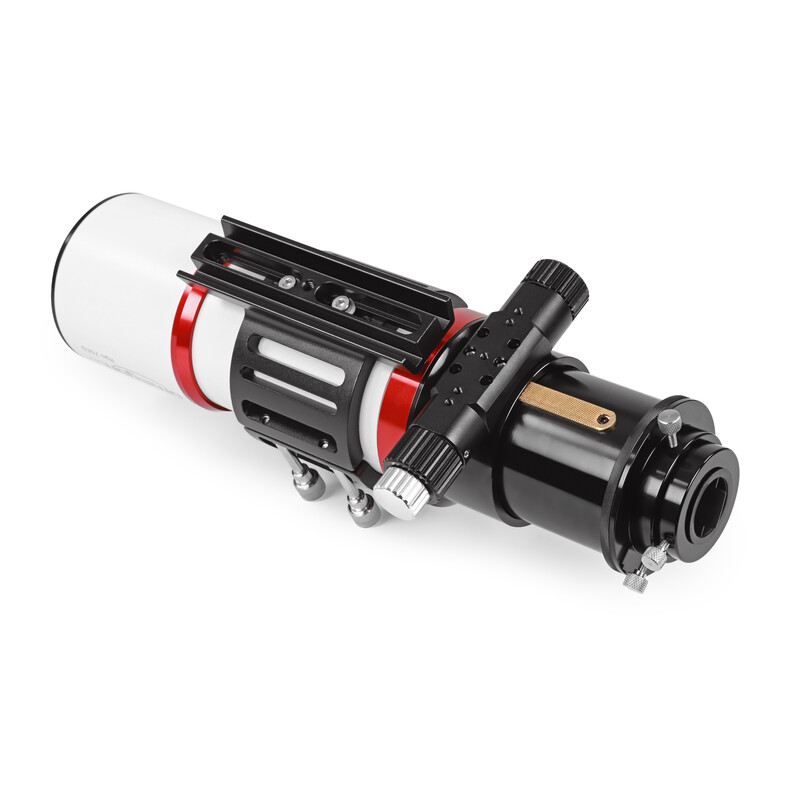

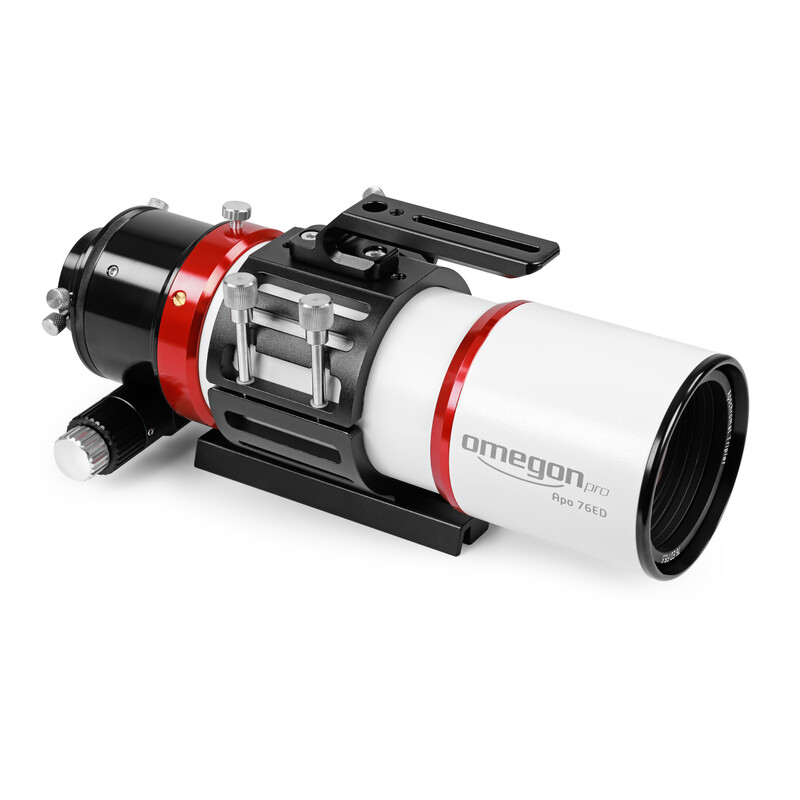

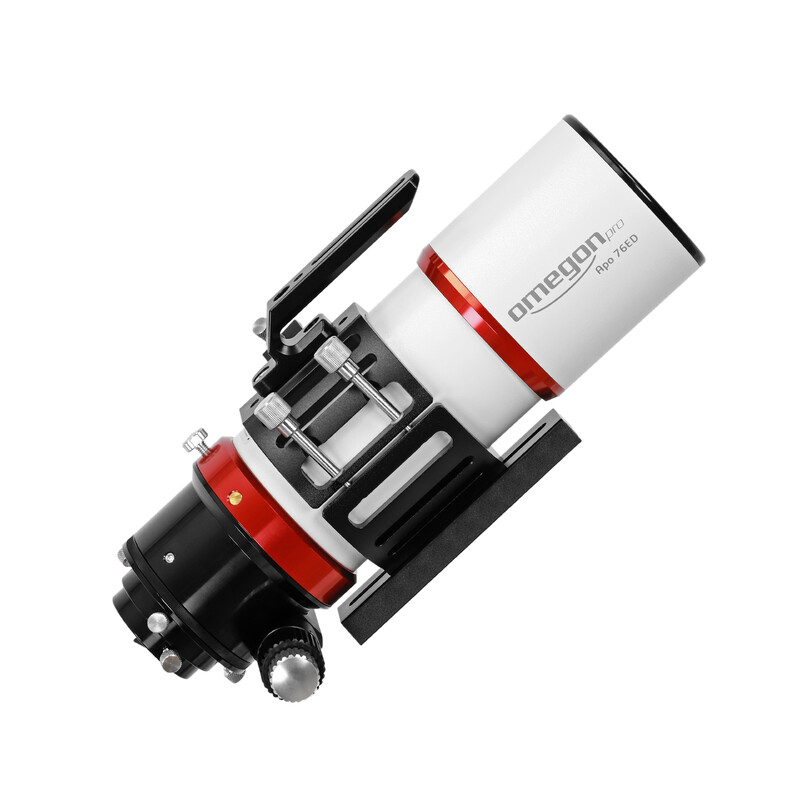

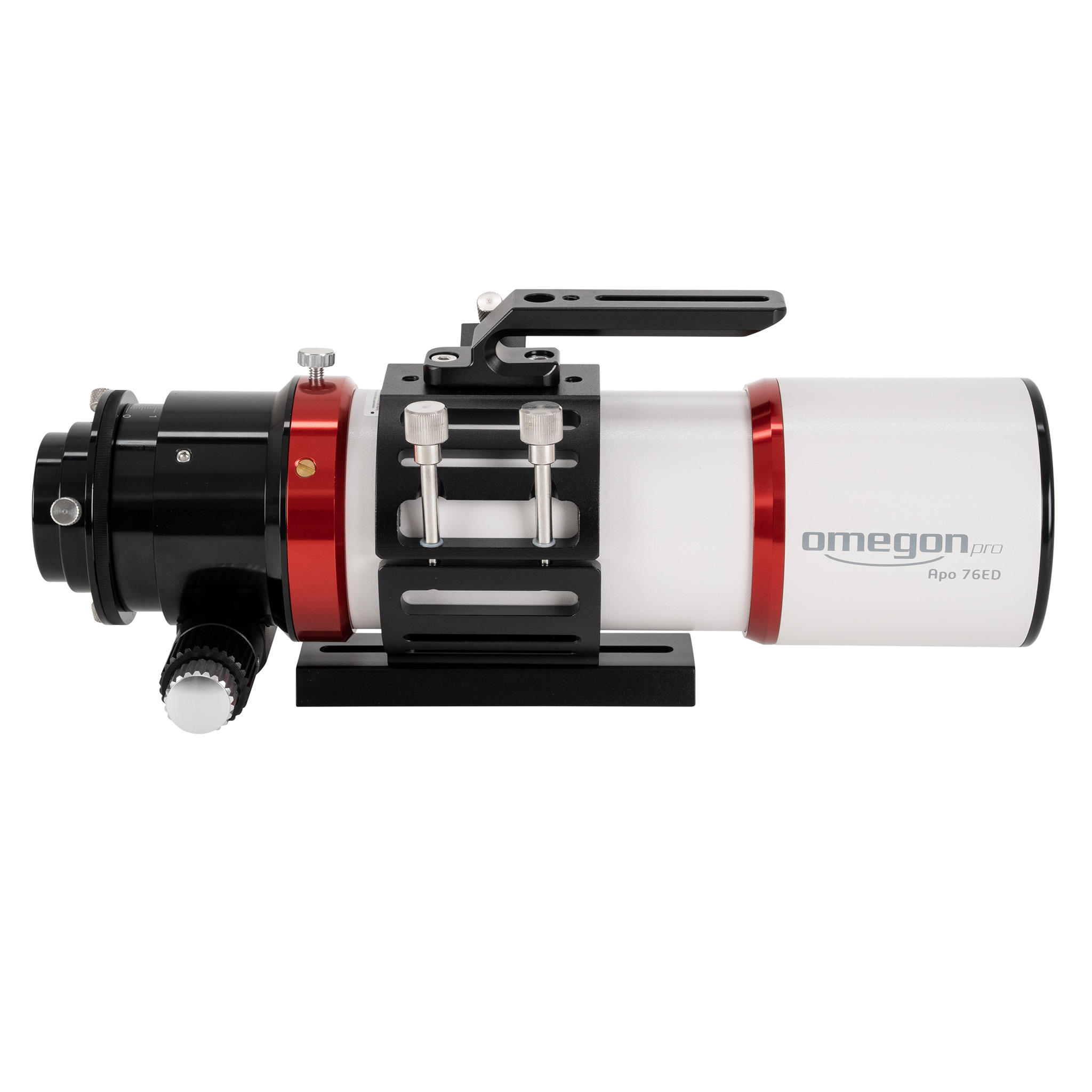

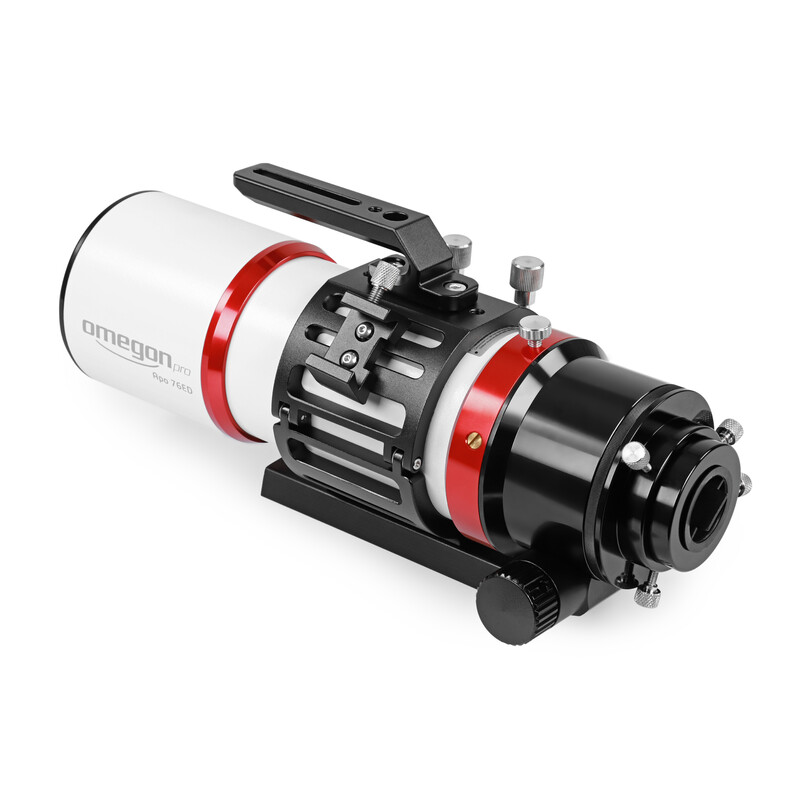

Apochromatic refractor Pro APO AP 76/342 Triplet ED OTA

RRP: $ 1,398.00 Our price:
$ 1,290.00 incl. VAT plus shipping costs
too expensive?
in stock
ready for shipping in 24 h + lead time

No delivery possible before Christmas. Order a voucher coupon!


Product description

More about the series Pro APO...

Portable at home or for travelling. Always great shots

On top of a mountain or in the desert. An excellent night also requires an excellent telescope. But good conditions are not to be found everywhere. This small apochromat is so compact you can take it with you wherever there is a clear sky. It makes good astrophotography even more mobile.

The highlights at a glance:

  • 76mm triplet ED Apo with three lenses for a colour-pure image with good contrast
  • Retractable dew cap for easy transport
  • 3" focuser with a 1:10 reduction ratio: Easily focus larger and heavier cameras with high precision.
  • Camera rotates 360° so you can find the right orientation
  • Vixen-type finder shoe so you can easily mount any finderscope

Why these optics reveal more details
No more images without contrast. This apochromat shows what is really possible: pure-colour and high-contrast observations and astrophotos. The key is a sophisticated optical design with premium ED glass for a crystal-clear image. Compared to most mirror systems, the better-defined optics allow you to see more and finer details when observing the planets, for example. All surfaces of the lens elements are treated with an effective multi-coating to prevent reflections. Enjoy memorable observations and shots.

2" connector

The focuser has a standard 2" connection with a reduction to 1.25". This allows you to connect all accessories from our range, such as eyepieces and adapters.

CNC tube designed for the best optics
The tube of the Omegon Apo consists of a CNC machined metal construction with a sophisticated anti-reflective aperture system. The entire tube is lined with a velvet-like, black fabric.

Extending and fixing the dew cap
The Apo's dew cap can be extended. It can be retracted for transport.

Specifications

Optics


Type
Refractor
Type of build
Apochromat
Aperture (mm)
76
Focal length (mm)
342
Aperture ratio (f/)
4,5
Resolving capacity
1,5
Limit value (mag)
11,2
Max. useful magnification
152
tube diameter (mm)
100
Tube construction
Full tube
Light gathering capacity
120
Coating
multiple
lens design
Triplet

Focuser


Type of build
Gear rack
Connection ( to eyepiece)
2 (M48)
Rotating
yes
Gear reduction
1:10 fine focusing
Adjustment range (mm)
58
Ring clamp
yes

Mount


Type of build
OTA
GoTo control
no
Mounting type
no mount

Included accessories


Eyepiece adaptor
1,25" & 2"
Tube clamps
yes
finder base
Vixen/Skywatcher Level
Prism rail
Vixen-Style

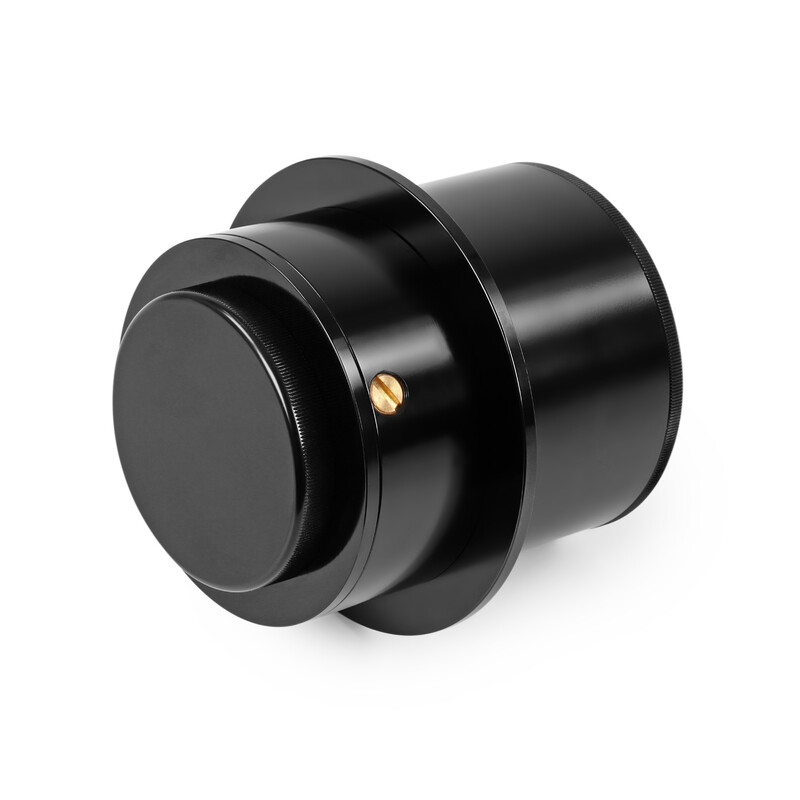

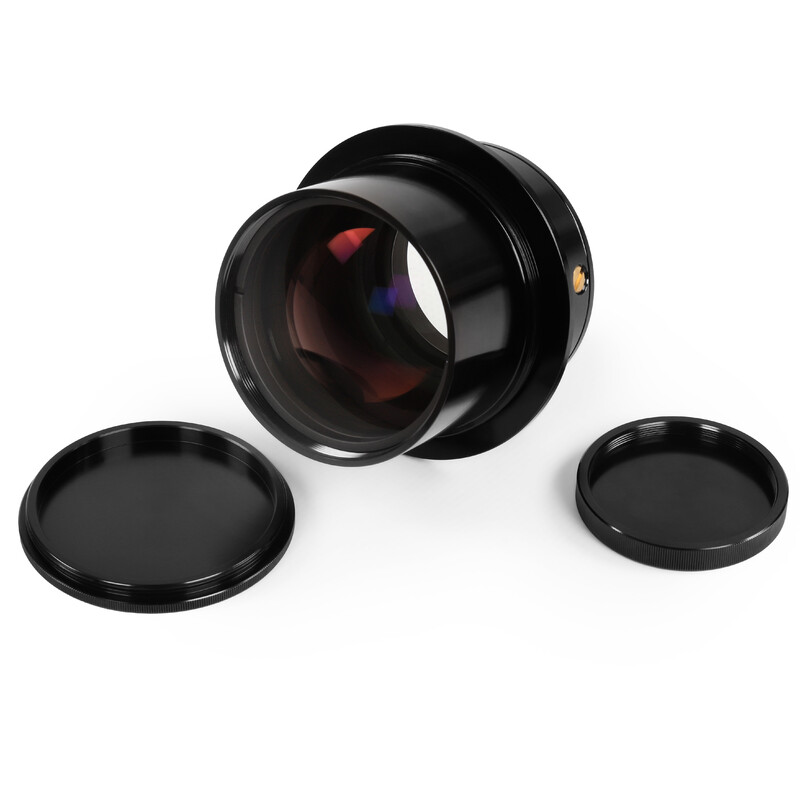

Corrector
integrated
Transport cases
no
Test protocol
no

General


Series
Pro APO

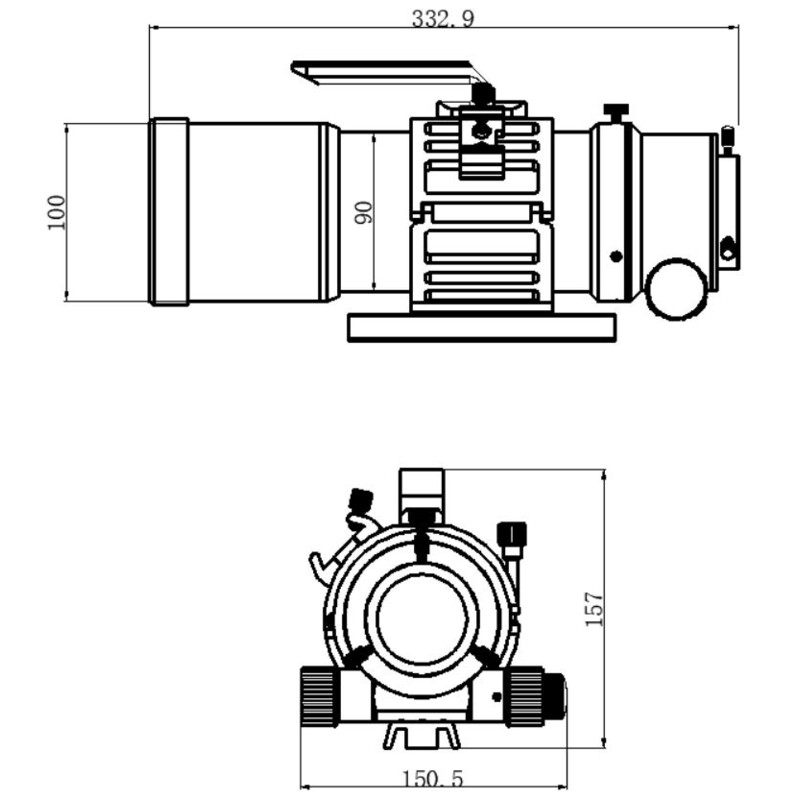

Length (mm)
333
Total weight (kg)
4

Area of application


Nature Observation
yes
Moon & Planets
yes
Nebulae & galaxies
yes
Astrophotography
yes
Sun
not recommended

Recommended for


Beginners
no
Advanced
yes
Observatories
yes

Product safety

manufacturer: NIMAX GmbH, Otto-Lilienthal-Str. 9, 86899 Landsberg am Lech, DE, www.nimax.de
