Microscopy > Microscopes > Stereo microscope > Stereo zoom sets > Motic > GM > Motic Stereo zoom microscope GM-171, trino, 7.5-50x, wd 110mm
Product no.: 66099

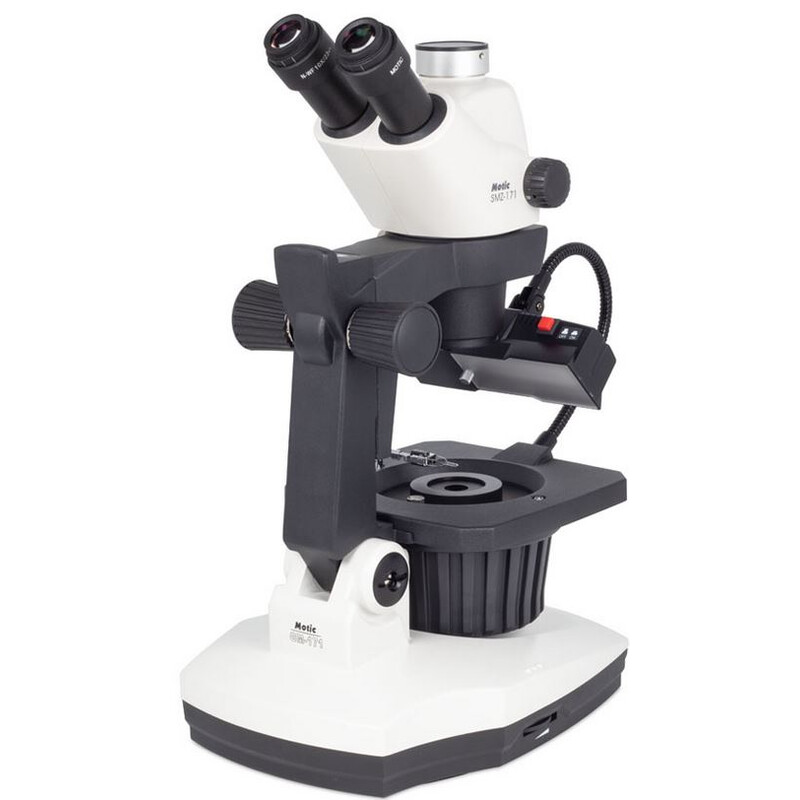

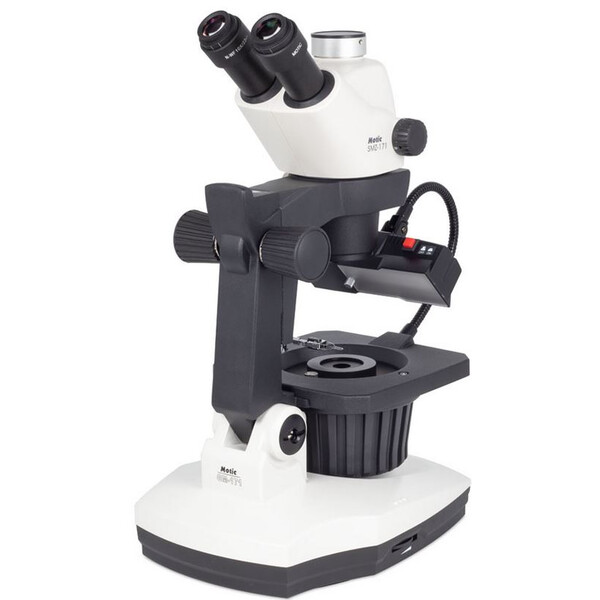

Stereo zoom microscope GM-171, trino, 7.5-50x, wd 110mm

$ 3,310.00 incl. VAT, plus shipping costs
too expensive?
short-term
ready for shipping in 1-2 weeks + lead time

Delivery possible before Christmas,
when your order by 04.12.!
Right of return up to January 31 2025!


Product questions?
advice for Microscopy

Product description

GM-171, trino, 7.5-50x, wd 110mm

Head: Trinocular

Optical system Greenough

Inclination 45º inclined

Interpupillary distance 52-75mm

Diopter adjustment On both eyepieces, +/- 5 diopter

Eyepieces Widefield WF10X/23mm

Objectives system Zoom, ratio 6.7:1

Objectives 0.75X~5X

Working distance 110mm

Stand type 360º rotary base

Diaphragm Iris diaphragm, adjustable aperture Ø41mm - Ø2mm

Head holder For Ø76mm head

Focus mechanism Coarse focusing system with tension adjustment

Focusing stroke 125mm

Incident illumination Fluorescent 7W with Gooseneck adjustable

Transmitted illumination Quartz Halogen 6V/30W with intensity control

Illumination features Darkfield illuminator

Transformer Internal

Power supply 100-240V (CE)

Accessories included Dust cover, stainless steel wire stone holder, aluminium carrying case

Dimensions LxWxH 391x236x505mm

Base 306x236mm

Column/Arm Height 268mm, 45º tilting arm

Net weight 8.2kg

Specifications

Optics

Magnification
50
Eyepiece
10
Lighting
Incident light and transmitted light
Lamp type
Halogen
Power supply
100-240V, VDE plug (CE) mains adaptor
Optical system
Greenough

Capacity

Brightness control
yes

Mechanics

Type of build
Trinocular
Focusing
Coarse movement
Viewing posture (°)
35° viewing angle, 360° rotatable
Specimen stage
Specimen stage
Working distance (mm)
110

Special features

Centering stage
-
Dust cover bag
yes
Wide-angle eyepiece
yes

General

Colour
grey/black
Series
GM

Field of application

Industry
yes

Area of application

Mineralogy
yes
Microbiology
yes
show more...
