Microscopy > Microscopes > Digital microscopes > Macroscopes > Optika > IS > Optika Microscope IS-4K3, zoom opt. 1x-18x, autofocus, 8 MP, 4K Ultra HD, pantograph stand, 15.6
Product no.: 83170

Microscope IS-4K3, zoom opt. 1x-18x, autofocus, 8 MP, 4K Ultra HD, pantograph stand, 15.6

RRP: $ 3,260.00 Our price:
$ 2,940.00 incl. VAT plus shipping costs
too expensive?
long-term
ready for shipping in 6-10 weeks + lead time

Right of return up to January 31 2025!


Product description

More about the series IS...

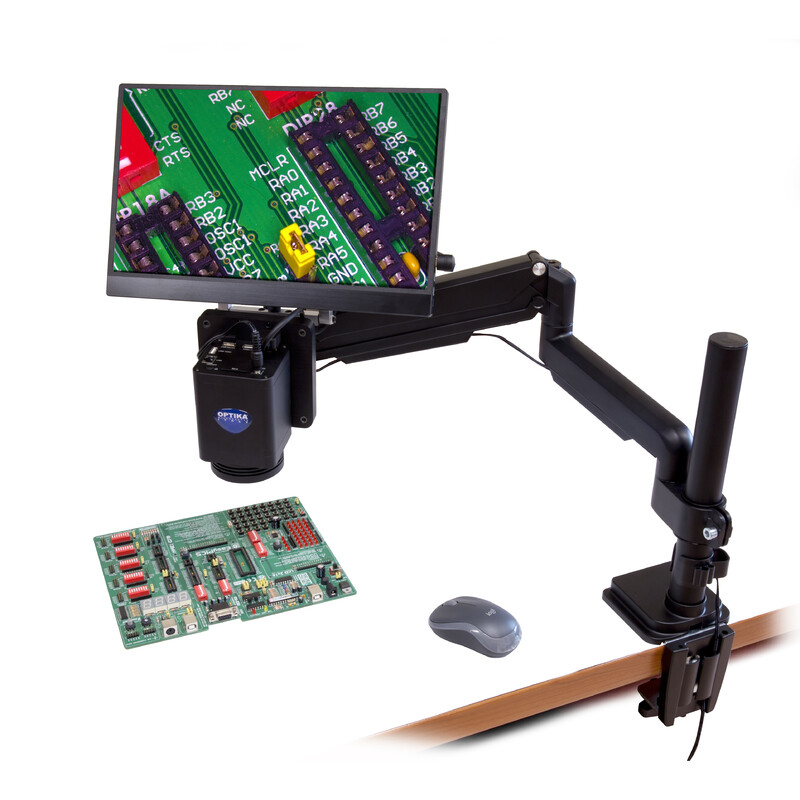

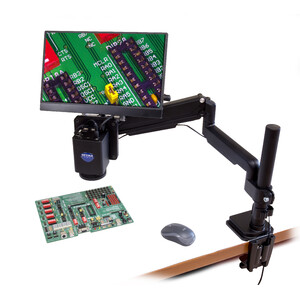

Advanced inspection system suitable for intensive use, ideal for video inspection in quality control of electronics, mechanics, and other industrial applications.

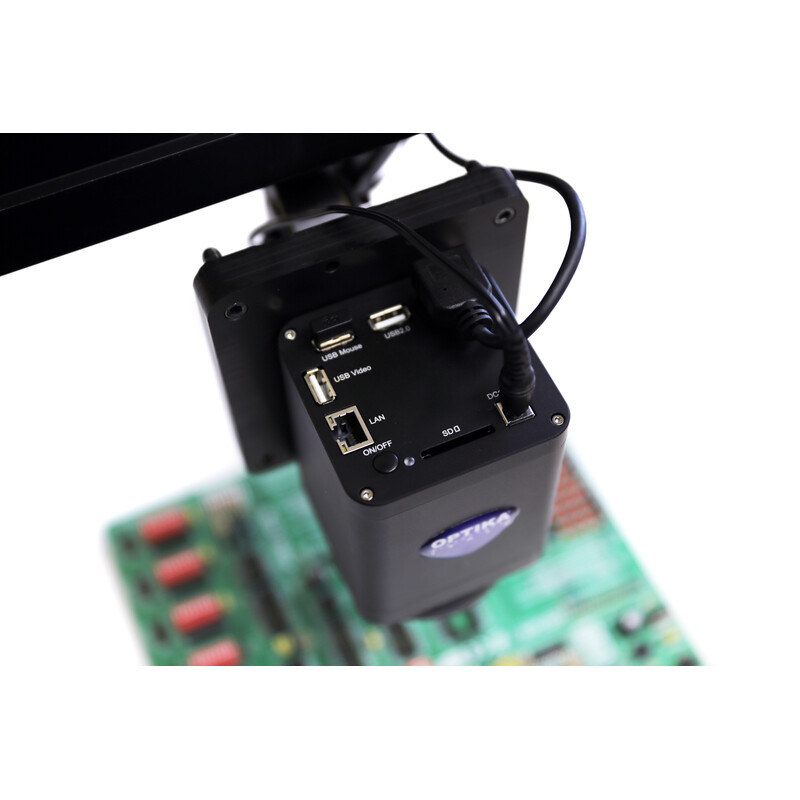

IS-4K3 includes the real-time full HD auto-focus camera with relevant zooming capalibilities (optical zoom is 1x…18x).
Crystal clear 4K live view is shown trough a large HD monitor, with incredibly fast connection (30 fps). Its angle of view is fully adjustable and it enables instant focus in less than 1 sec. with no need to constantly adjust lens position. In addition, the working distance goes to infinity, making it the recommended solution to inspect multi-layered objects.
All functions are controlled directly from the screen via a wireless mouse.
Images and videos can be saved on the SD card and easily transferred on any device.

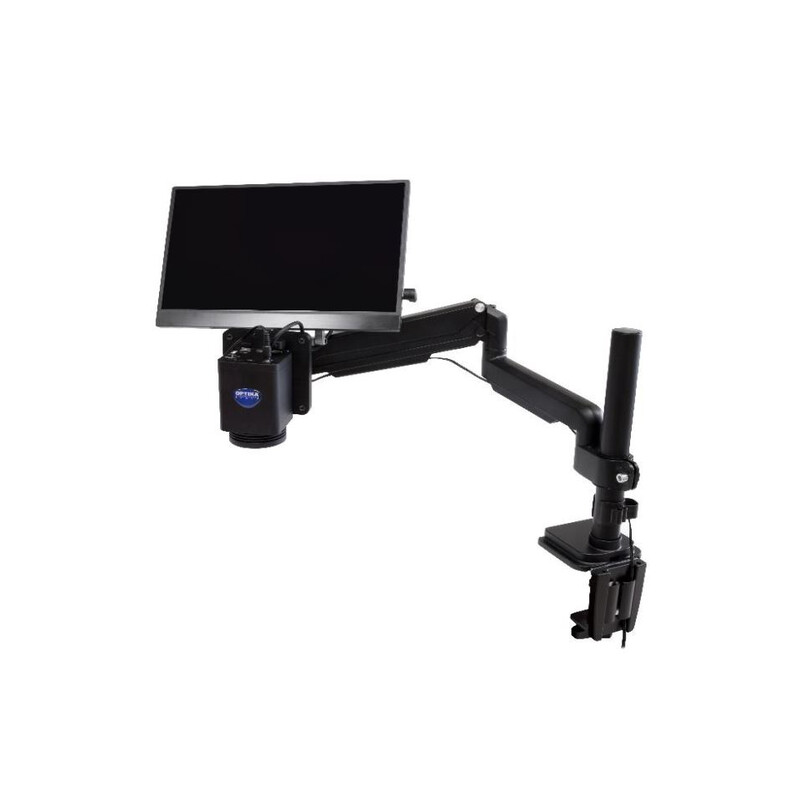

The system is completed by the table clamping SZ-STL5 highly versatile flexible arm stand, 360° rotating, ideal for high and large samples and on every bench thanks to its compact ootprint, saving valuable space on the bench.

Specifications

Optics


Lighting
Incident light
Power supply
Power plug

Capacity


Optical zoom
1x-18x
LCD screen
15.6
Size of chip (mm)
1/2.8"

Mechanics


Type of build
Digital
Working distance (mm)
160-255
Focusing
- (Autofocus)
Specimen stage
-

Special features


Built-in digital camera
yes

Camera


LCD screen
15.6
Colour camera
yes
Resolution Photograph (Pixel)
3840x2160
Megapixel
8
Pixel size
1.45
sensor
CMOS
Size of chip (″)
1/2.8
Shutter
Rolling Shutter
Sensitivity (mV/s)
300
Min. exposure time (ms)
0.04
Max. exposure time (ms)
1000
Image format
16/9
frame rate (fps)
30
Extendable storage
yes

General


Series
IS
Colour
black
Height (mm)
645
Length (mm)
550
Width (mm)
740
Weight (g)
20000

Contrast methods


brightfield
yes

Field of application


Industry
yes

Area of application


Mineralogy
yes
Semiconductor technology
yes
Metallurgy
yes
Odontotechnics
yes
Automotive
yes

Miscellaneous


supplier product number
IS-4K2

Product safety

manufacturer: Optika S.R.L., Via Rigla, 32 - Italia , 24010 Ponteranica (BG), DE, http://www.optikamicroscopes.com/
