More about the series Hyperion...

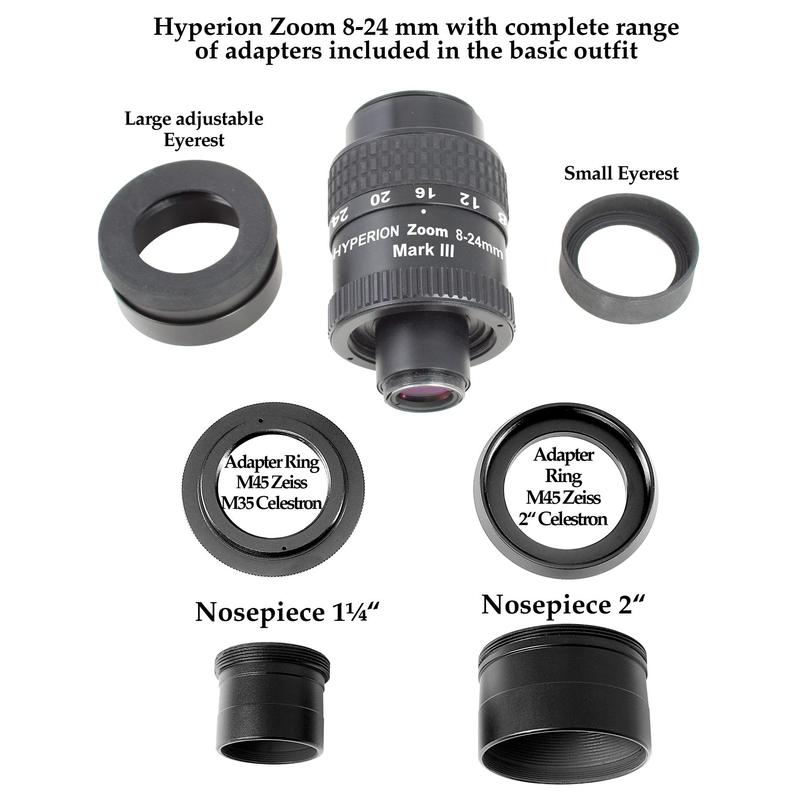

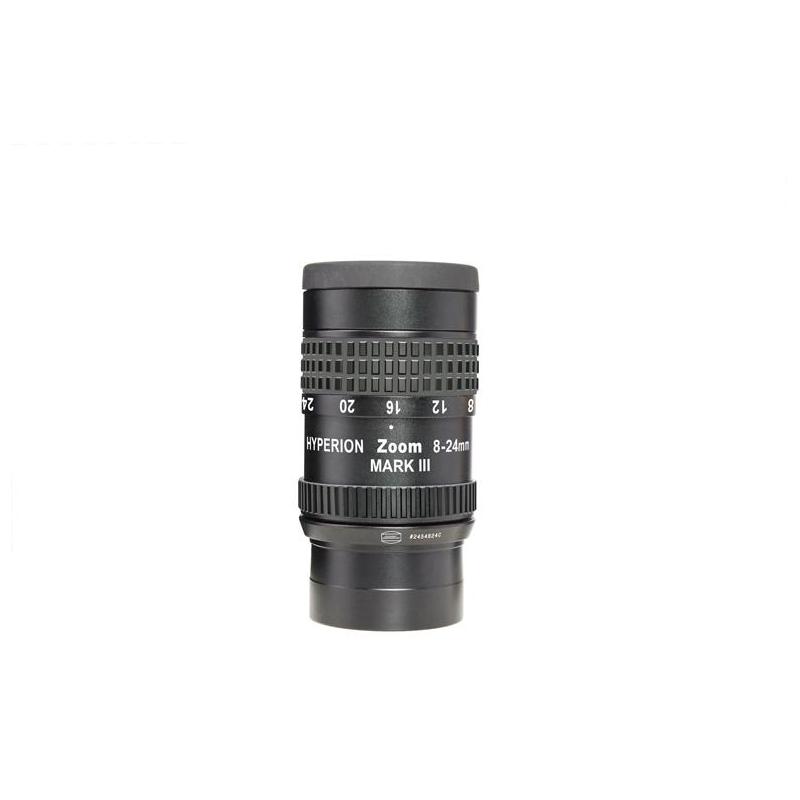

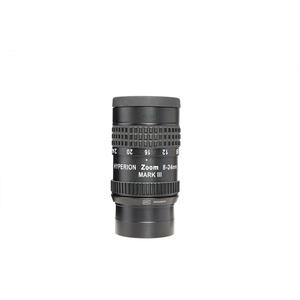

Hyperion 1.25", 8-24 mm ClickStop Mark III zoom eyepiece, including thread for M35 Synta/Celestron and M45 ZEISS Diascope spotting scopes
- 50 to 68 degree apparent field of view

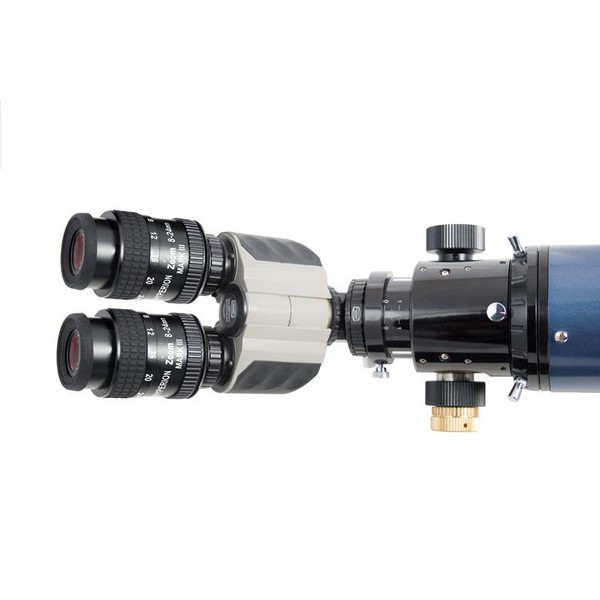

- fully bino-viewer compatible
- with click-stop for focal lengths: 8/12/16/20/24mm
- including 1-25" chrome-plated barrel with safety groove (removable)
- including adapter threads to (almost) all Celestron Ultima spotting scopes
- including adapter thread to all Carl ZEISS Diascope spotting scopes!

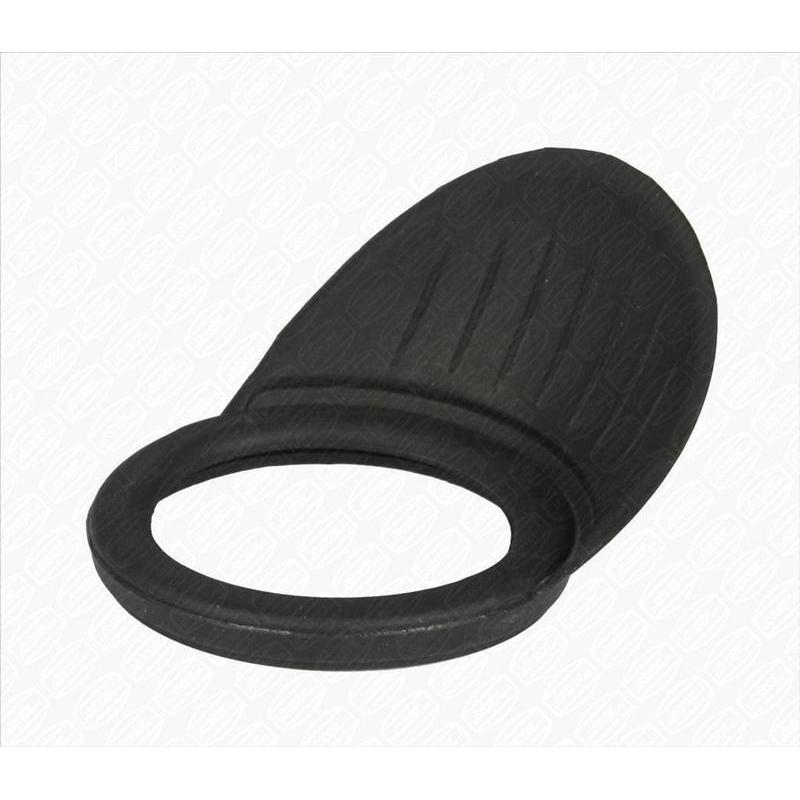

- including winged rubber eyecup with helicoil thread
The advantages in a nutshell:
- high quality workmanship
- relaxed viewing
- large field of view
- perfect sharpness
- excellent colour fidelity
- dual use with 1.25" and 2" barrels
- low distortion
- low astigmatism
- no 'kidney bean' effect
Baader Phantom Group coating™ - this is a 7-layer broadband anti-reflection coating with extremely low residual reflection. The designation 'Group' indicates that the most effective anti-reflection layer system is worked out for each type of glass used in the respective eyepiece.
All these various antireflection coatings, on each type of glass surface, have then been optimized so that they are most effective where the human eye is at its most sensitive at night - i.e. at about 520nm, which is in the green region of the spectrum.
The best anti-reflection coatings appear almost colourless - this proves that the coating is functioning equally well over the entire visible spectrum. Phantom Group antireflection coatings are - depending on the type of glass - almost entirely colourless. In this way it is ensured that the least light is lost to the night-adapted eye and that no scattered light will interfere.
If you look directly at a coated lens (eyepiece or objective) and can see a strong green reflection, then it is not a Baader Phantom Group coating! An intense green reflection is indicative of a relatively low-tech coating technology and means that light is being wastefully reflected - i.e. lost - right in the useful spectral range between 500-550nm.
Our expert comment:
Note to owners of ZEISS spotting scopes:
The Hyperion zoom can be connected directly to ZEISS spotting scopes. The zoom range is about the same as for the Vario 15-45x/20x60x eyepiece. The minimum magnification is somewhat larger and the field of view somewhat smaller than the ZEISS.
The new Hyperion Zoom Mark III features an eye-side M43 thread.
With the Hyperion T-Adapter, the T2 extension ring and the respective camera specific T2-Ring, you can connect all standard SLR cameras.
The Hyperion zoom eyepiece is also good value for money!
(Bernd Gährken)
Hyperion eyepieces can be connected to an SLR camera using a simple adapter. You can see how straightforward it is in this video:
zum Video
(Marcus Schnenk)
