Product no.: 83069

StellaVita (=AstroStation)

RRP: $ 399.00 Our price:
$ 359.00 incl. VAT plus shipping costs
too expensive?
short-term
ready for shipping in 3-5 weeks + lead time
  • 2x USB 3.0 + 2x USB 2.0
  • 12V 8A in, 4x 12V (max. à 3A) out
  • Comprehensive accessories included

Product description

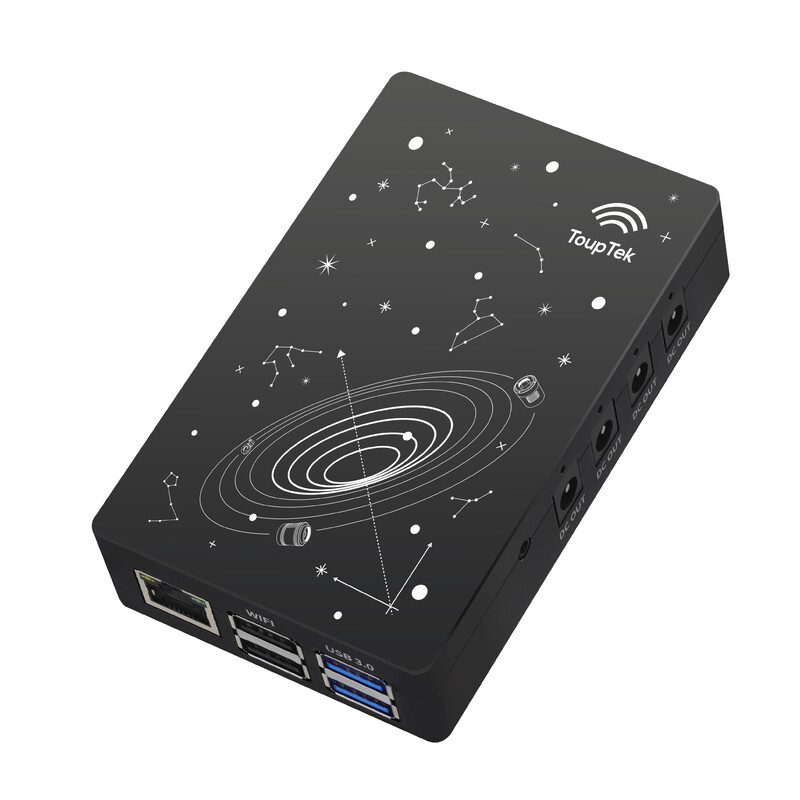

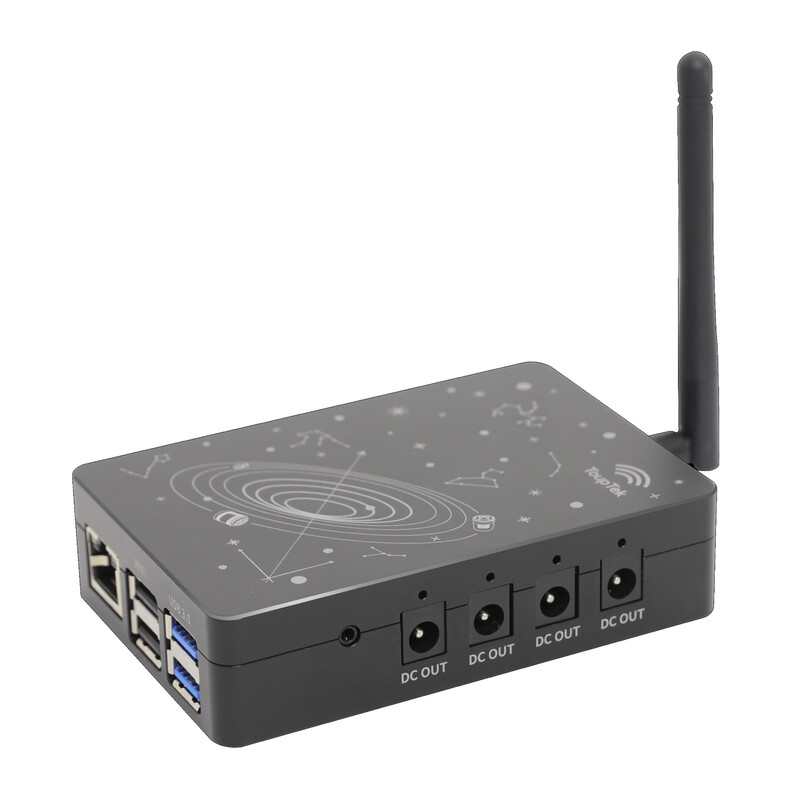

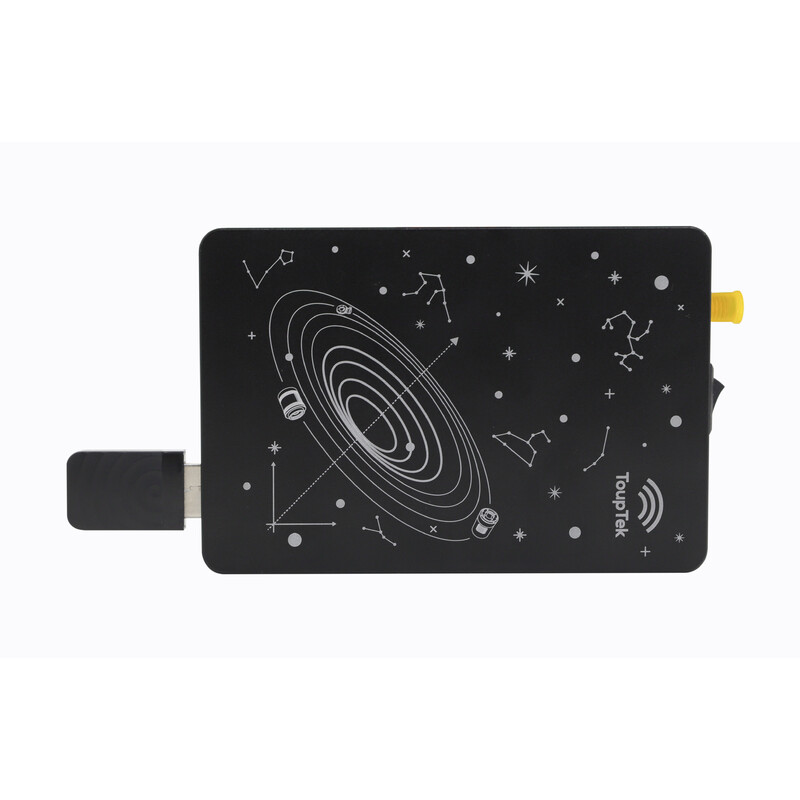

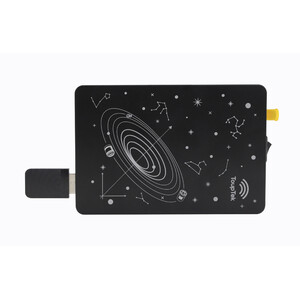

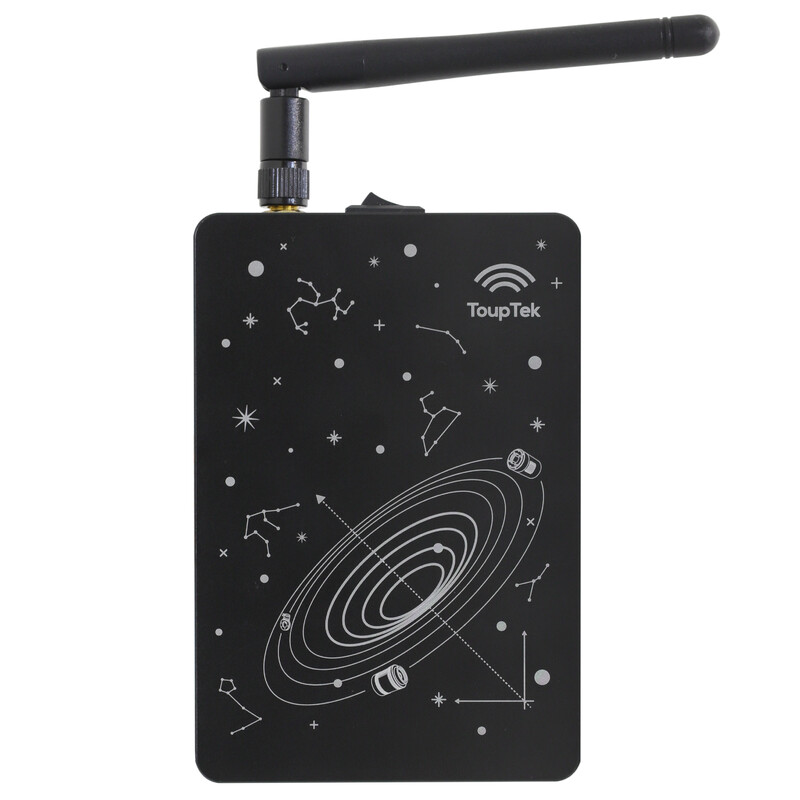

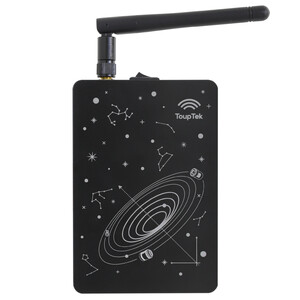

The ToupTek AstroStation is a versatile and intelligent astrophotography controller designed for mobile setups.

Compatible, clear and compact

The AstroStation controls astrophotos easily and efficiently. You can manage various astronomical products such as tracking cameras, deep-sky cameras, planetary cameras, motorized focusers, filter wheels and equatorial mounts via the dedicated smartphone app. ToupTek deliberately remains compatible with many camera brands. This allows flexibility, customization and expansion based on your personal requirements.

System requirements

Android 10.0 (6GB RAM, Android App download) / IOS/IPAD OS 15.0 (iTunes App download)

Compatible with:

Native:

  • Omegon (All current devices),
  • ToupTek Astro (All devices),
  • ZWO (Cameras),
  • QHYCCD (Some models of cameras),
  • PlayerOne (All devices)

INDI Platform-Compatible Manufacturers/Devices:

  • ZWO (Filter wheels, electric focusers, equatorial mounts),
  • QHYCCD (Some models of Filter wheels & electric focusers),
  • ATIK (Cameras),
  • Equatorial mounts based on Onstep settings (Meow, EasyMount, WarpAstron, CLEARSKY, JUWEI, BlackHole, etc.),
  • Gemini (Electric focusers),
  • Astroasis (Electric focusers, filter wheels),
  • Sky-Watcher (Equatorial mounts),
  • iOptron (Most of devices),
  • Celestron (Equatorial mounts)

DSLR camera shooting is not yet supported (under development, as of March 2025)

Specifications

Capacity


Input voltage
12V / 8A
Supported operating systems
Android, iOS (see product description)
Internal memory
32 GB, aufrüstbar bis 256 GB
Output voltage
12
Language
English
Interfaces
WiFi, LAN, USB (2x USB 3.0 + 2x USB 2.0)
Type of memory card
SD
Plug
5.5/2.1mm
Power supply
12
Power consumption (mA)
ca. 400
Connector
4x 5.5/2.1mm (max. 12V / 3A)
Supply voltage
12

Special features


Updateable via web
yes
Fitting for prism rail
yes (Dovetail rail for universal finder scope shoe)

Equipment


Power pack
no
Prism rail
yes

General


Outer material
anodised aluminum
Colour
black
Type
Controls & Shutter Release

Area of application


Autoguider
yes
Galaxies and star clusters
yes
Moon & Planets
yes
Nebulae & galaxies
yes

GoTo control


WIFI
yes

Product safety

Manufacturer: Hangzhou ToupTek Photonics Co., Ltd., 15F, Aoqiang Building 1, No. 6, Xiyuan 5th Rd., Hangzhou, 310030 Zhejiang, CN, www.touptek.com
Responsible person: NIMAX GmbH, Otto-Lilienthal-Str. 9, 86899 Landsberg am Lech, DE, [email protected]
ToupTek StellaVita (=AstroStation)

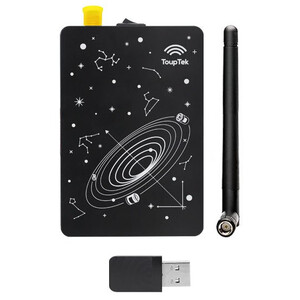

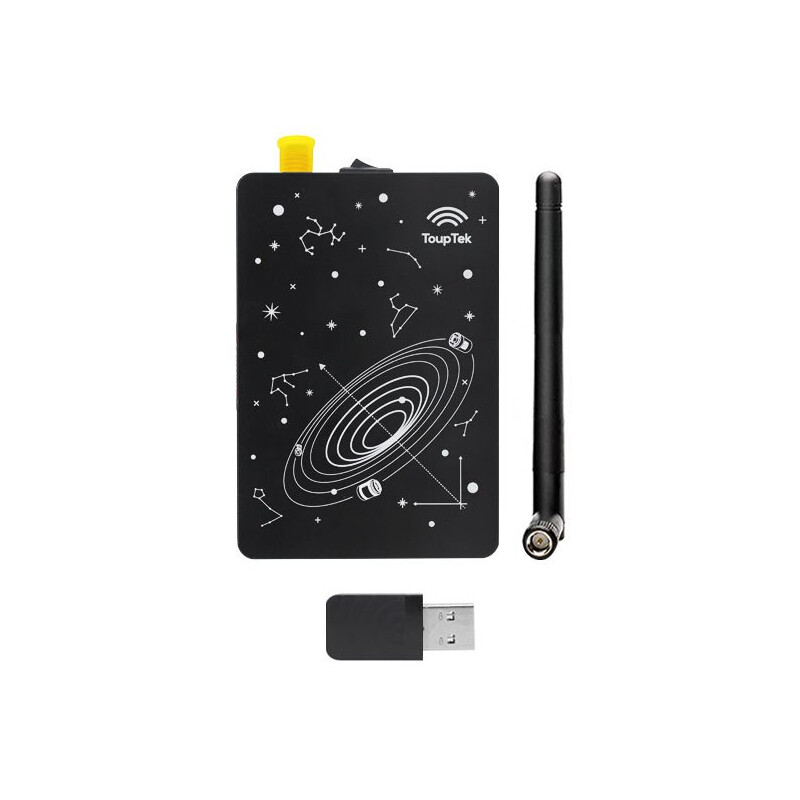

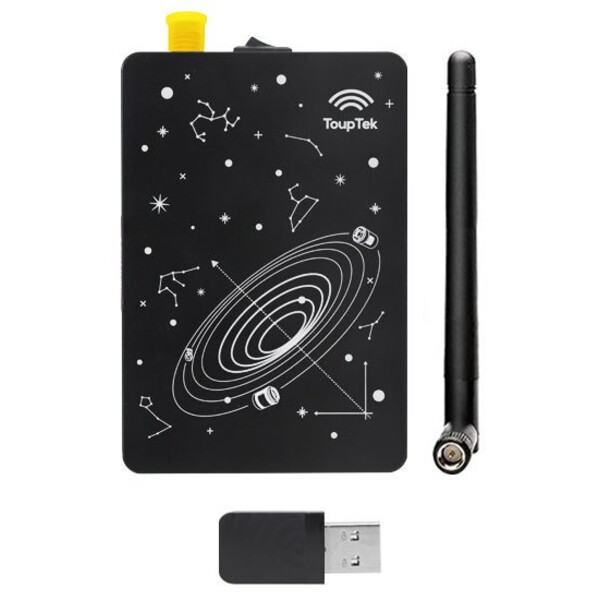

Controller, Wifi antenna and separate Wifi dongle
ToupTek StellaVita (=AstroStation)

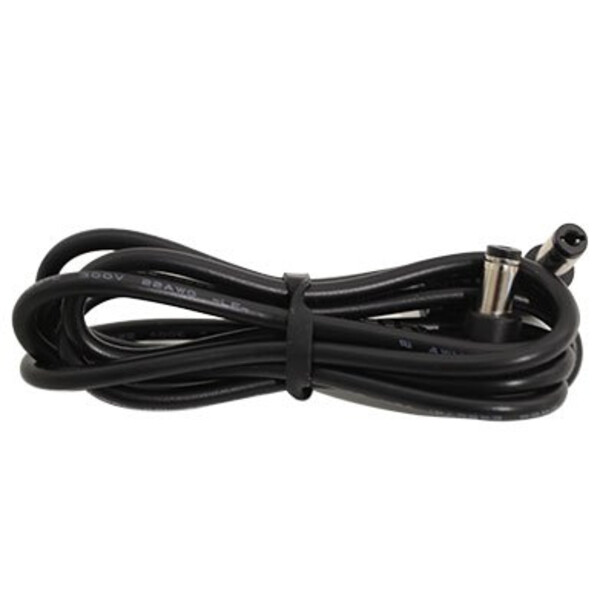

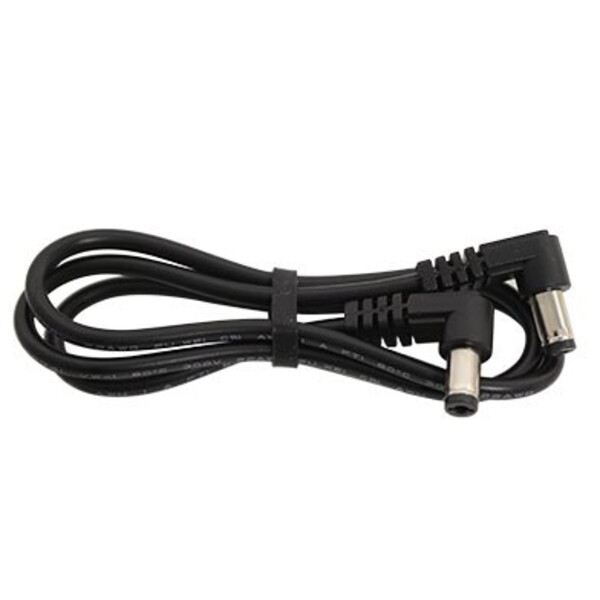

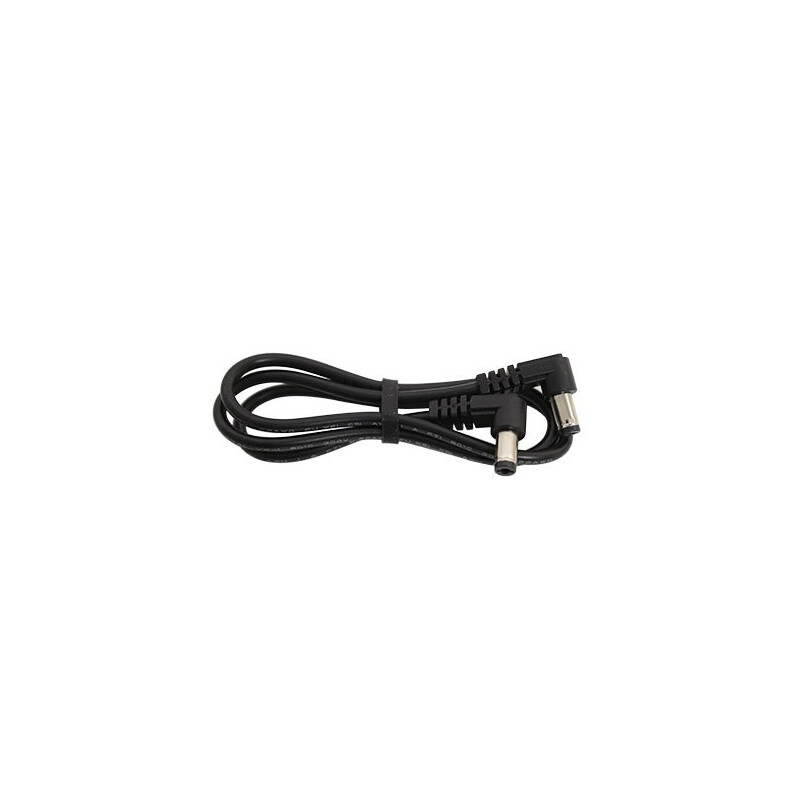

2x 0.5m DC 5.5/2.1mm
ToupTek StellaVita (=AstroStation)

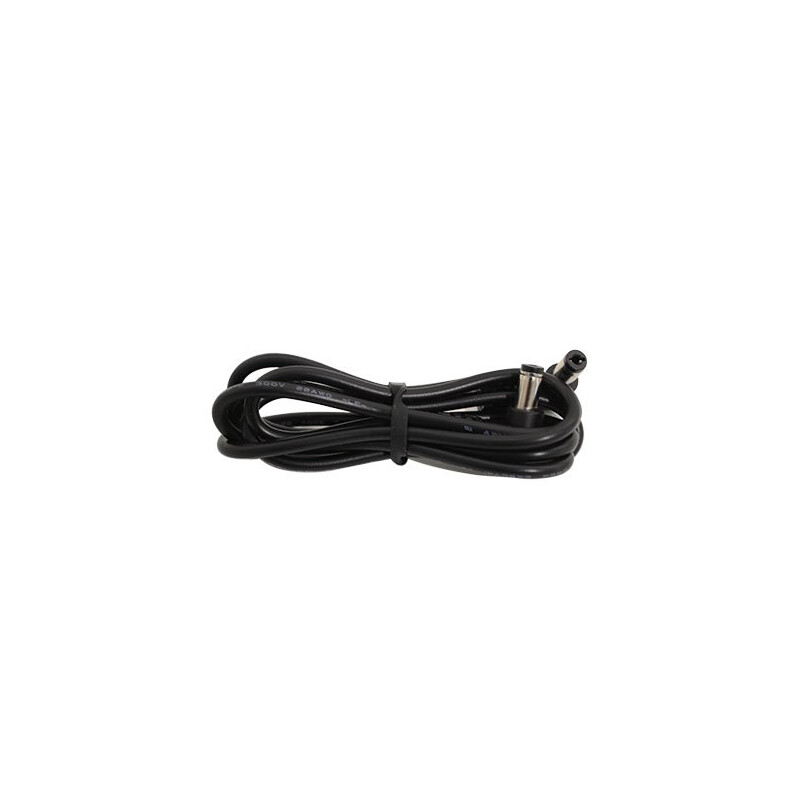

2x 1.5m DC 5.5/2.1mm
ToupTek StellaVita (=AstroStation)

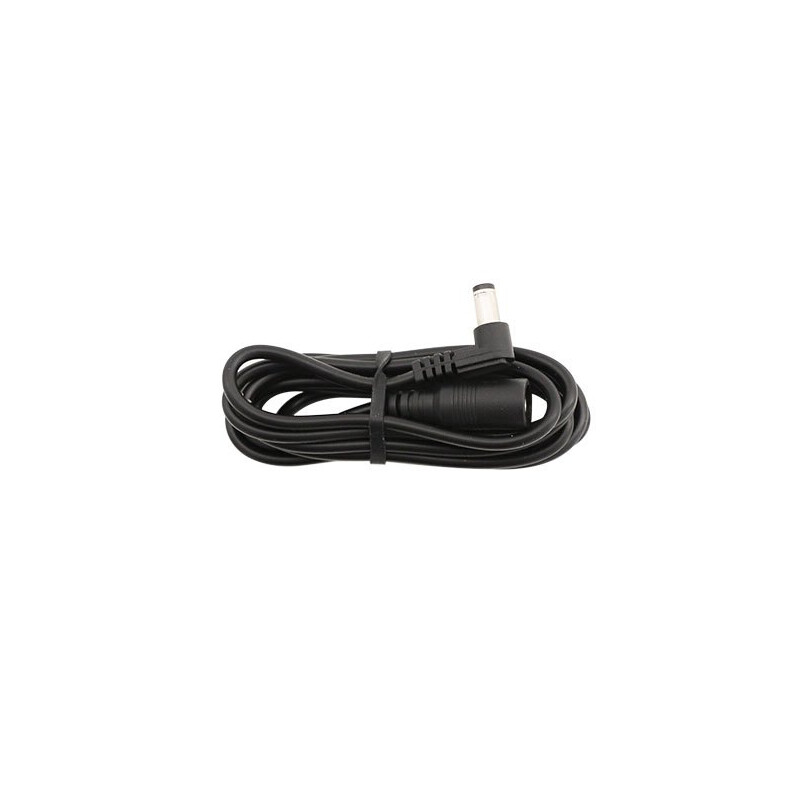

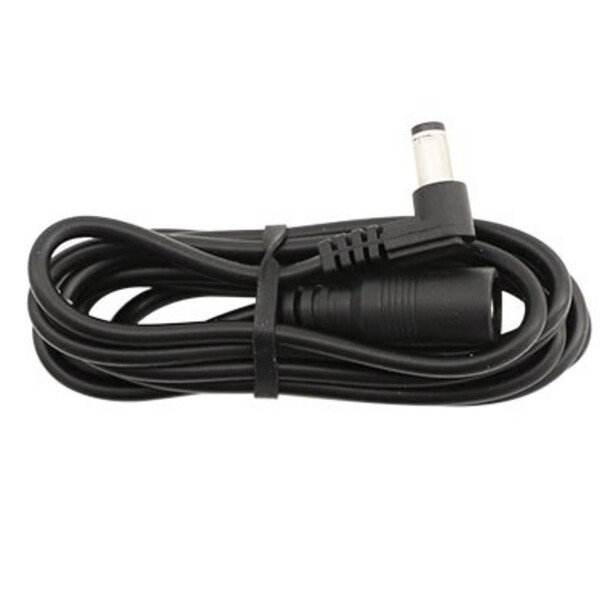

1x DC 5.5/2.1mm extension
ToupTek StellaVita (=AstroStation)

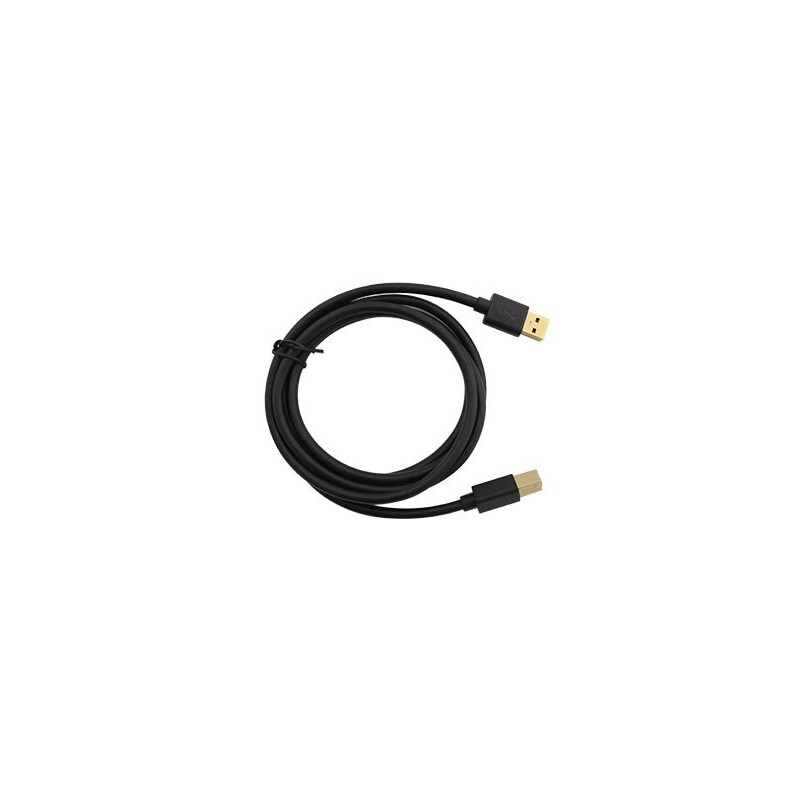

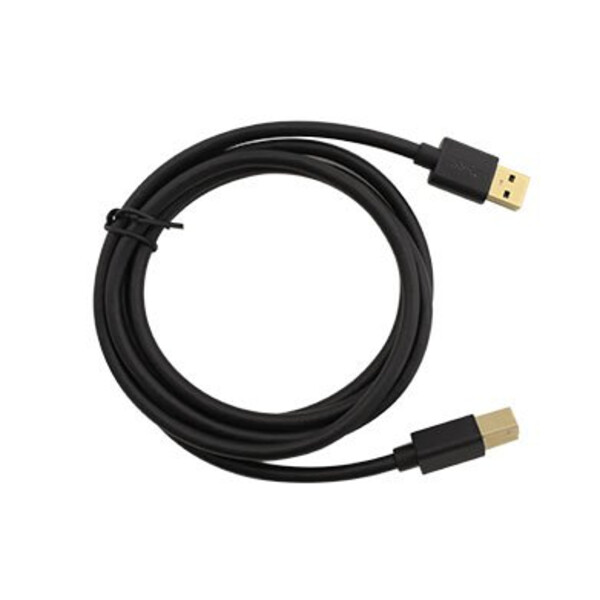

1x 1.5m USB 3.0 type A to type B

Customer reviews

Seems to be working - not fully tested yet

Review by M. G. on 23.04.2025 15:14:59

( 4 / 5 )

Received the product today, ordered on 9th of April (so 2 weeks ago). It was carefully packaged and even though the outside of the packaging was a bit damaged, the product box was intact. Once unboxed, tried to screw in the Wi-Fi antenna, noticed the connector was poorly screwed in, so I risked damaging it if I continued to screw in the antenna. Hence, I carefully opened the StellaVita, took 8 screws out (the lid + motherboard). Then I proceeded to properly tighten the connector, reattached the lid.
I successfully powered it on, connected the extra Wi-Fi dongle as well. Installed the Android app and connected without issues. Managed to switch the Wi-Fi bridge on and then updated to latest version without issues.

Seems fine, interface looks nice, I also added an SD card and it it seen in the app. Deducted 1 star for the Wi-Fi connector.
