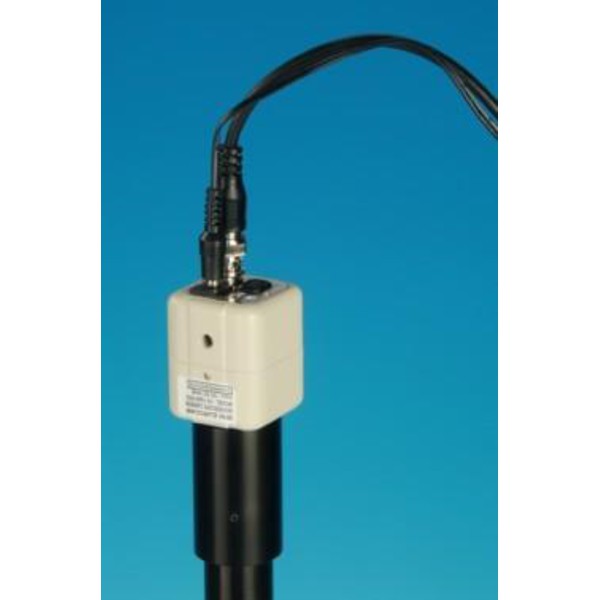

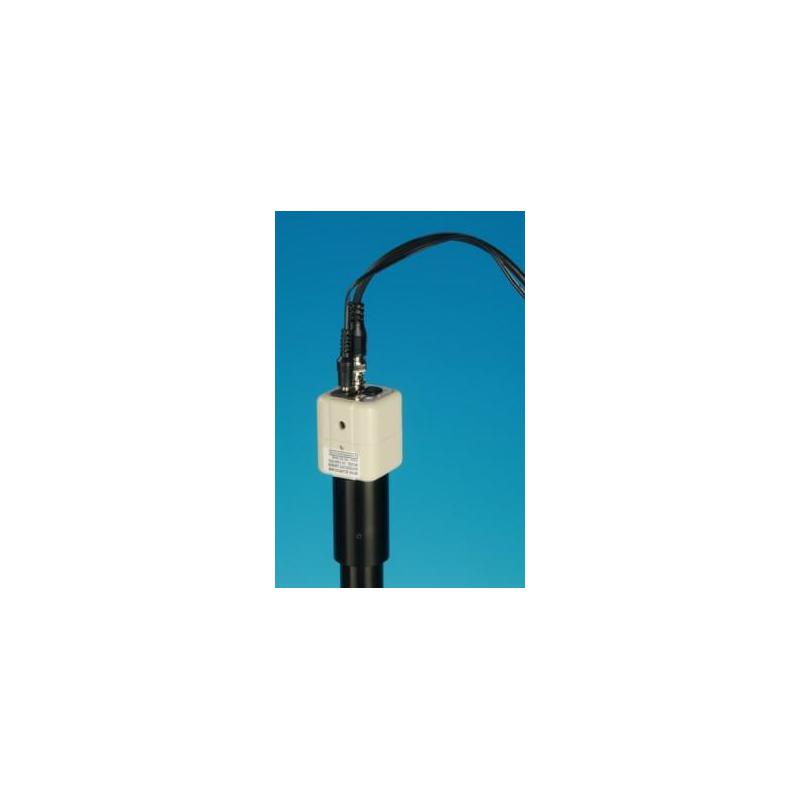

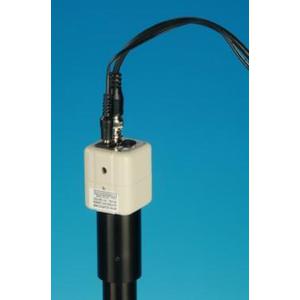

CCD color camera VC.1010, (1/3 " - 380 lines)

This Euromex CCD cameras are equipped with composite and / or S-video outputs and can therefore view images on a monitor, television or projector. With a small video-grabber, these images can be digitized. The following models are equipped with 1 / 3- or 1/2 inch CCD sensors and one or two video outputs. The cameras come with the necessary cables.

Eurocam Mini Microscope Camera:

• Recording element: 1/3 "color sensor with 512 (H) x 582 (V) lines
• Resolution: more than 380 lines, 290,000 pixels
• Minimum Sensitivity: 0.1 Lux, auto white balance
• Shutter control: manually or automatically to 1 / 100,000 seconds
• CS mount for microscope adapter or additional lenses
• Power supply: incl. Detachable cable with plug transformer 12 volts DC
• Dimensions: 42x44x49 cm, weight 170 grams
• Video Output: Composite Video, BNC output for TV / monitor
• Microscope adapter: incl. Detachable microscope adapter for microscopes with eyepiece tube 23.2 mm
