Microscopy > Microscopy accessories > Cameras > Cameras > Euromex > sCMEX > Euromex Camera sCMEX-20, color, sCMOS, 1", 20 MP, USB 3.0
Product no.: 60710

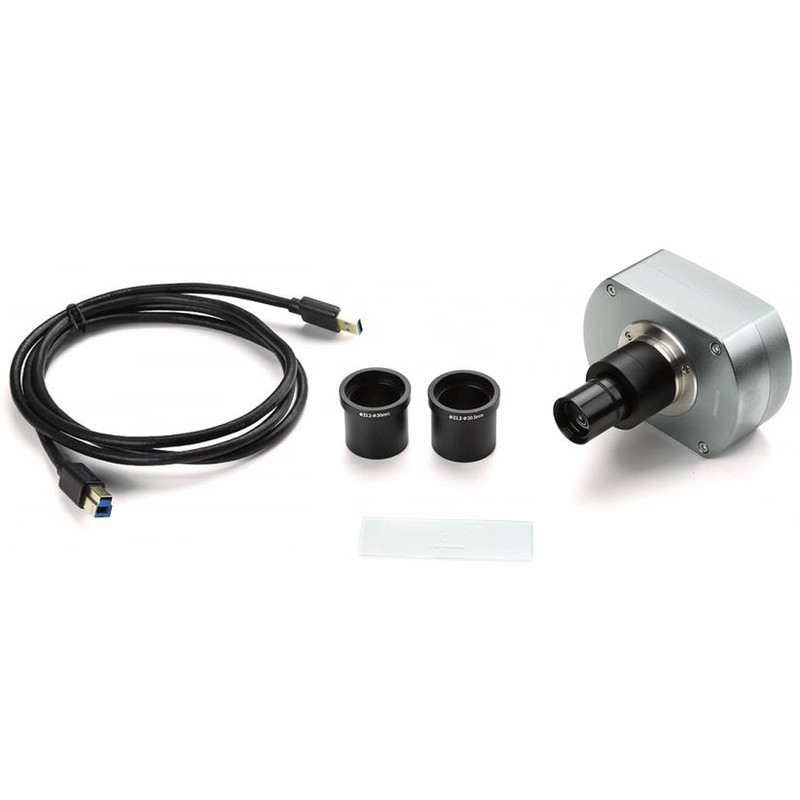

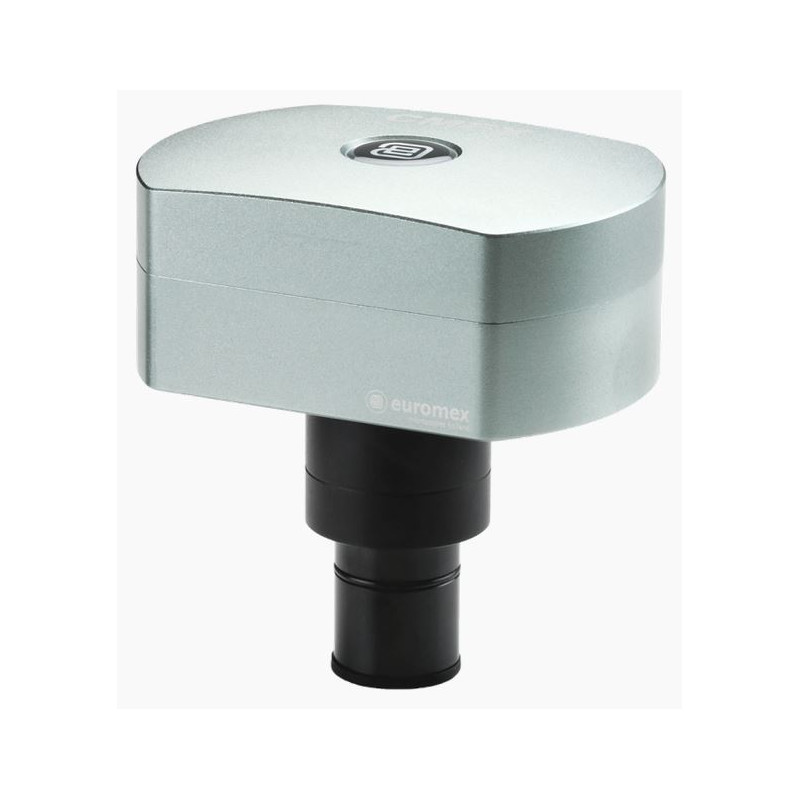

Camera sCMEX-20, color, sCMOS, 1", 20 MP, USB 3.0

$ 1,420.00 incl. VAT plus shipping costs
too expensive?
short-term
ready for shipping in 3-5 weeks + lead time

No delivery possible before Christmas. Order a voucher coupon!


Product questions?
advice for Microscopy

Product description

sCMEX

The different USB-3 sCMOS cameras with ImageFocus capture and analysis software are the perfect solution for today’s educational, laboratory and industrial microscopy needs. The cameras are suitable for Life Science and Materials Science microscopes as well as stereo microscopes sCMEX USB-3 cameras with Scientific sCMOS sensorThe sCMEX-3, sCMEX-6 and sCMEX-20 cameras are equipped with a scientific grade back illuminated sCMOS sensor with 16 bits grayscale conversion and an outstanding 36 bits color rendering. Suitable for brightfield, darkfield and fluorescence. The sCMEX cameras are equipped with a USB-3 data interface and supplied with ImageFocus Alpha software

Besides capturing images and videos, the software allows measurements on still and live images and annotations on captured images. Compatible with Windows 7, 8 and 10, both 32 and 64 bits configurations. Also compatible with Mac OS (image capturing only). PC requirements: Intel Core2 2.8 GHz or higher or equivalent, 2 GB memory, USB-3 port, 17 inch display

Highlights

  • Highest speed camera
  • SONY Exmor R sCMOS color USB 3.0 camera
  • Low signal/noise ratio
  • USB 3.0 interface
  • Back-illuminated sCMOS sensor
  • Perfect color-reproduction capability

Specifications

Capacity

Size of chip (mm)
1"
Megapixel
20
Resolution Photograph (Pixel)
5440x3648
Resolution video (Pixel)
2736x1824
Internal memory (Megabyte)
-
TV output
yes
Interface
USB 3.0
Video function
yes
frame rate (fps)
5440 x 3648: 15; 2736 x 1824: 50; 1824 x 1246: 60

Camera

Megapixel
20
Peltier cooling
no
Colour camera
yes
Pixel size
2,4
Image transmission
USB 3.0
sensor
CMOS
Size of chip (″)
1
Resolution Photograph (Pixel)
5440x3648
frame rate (fps)
11
Shutter
Rolling Shutter
Min. exposure time (ms)
0.264
Max. exposure time (ms)
15000
Sensitivity (mV/s)
0.21 V/lux sec
adapter required
1x
Software
ImageFocus Alpha
Supported operating systems
Win 7/8/10 Mac OS

General

Series
sCMEX

Miscellaneous

supplier product number
DC.20000s
show more...

Product safety

manufacturer: Euromex Microscopen bv, Papenkamp 20, 6836 BD Arnhem, NL, http://www.euromex.com (neu), http://www.euromex.nl/de
Product safety
Euromex Camera sCMEX-20, color, sCMOS, 1", 20 MP, USB 3.0
Euromex Camera sCMEX-20, color, sCMOS, 1", 20 MP, USB 3.0
