Astrophotography > Cameras > Astronomical Cameras > Starlight Xpress > Starlight Xpress Camera All-Sky Oculus 180 Mono
Product no.: 44331

Camera All-Sky Oculus 180 Mono

RRP: $ 1,240.00 Our price:
$ 1,040.00 incl. VAT plus shipping costs
too expensive?
short-term
ready for shipping in 1-2 weeks + lead time

No delivery possible before Christmas. Order a voucher coupon!


Product description

Oculus is the new standard for monitoring the sky: So you will always have the weather, meteors and fireballs in view - also ideal for remote observatories!

A CCD sensor from Sony is used in this camera, which features low dark noise and a very fast electronic shutter. The fish eye lens has a fast focal ratio of f2 and a full 180° field of view from horizon to horizon. This creates dreamlike images of the night sky!

Some features:

  • The camera is housed under a small polycarbonate dome, so making it weatherproof. The position of the camera under the highly polished dome was chosen so that any distortions are minimized. An L-mounting plate with 1/4 inch tripod mount comes included in delivery. The plate also allows the camera to be mounted onto a building or an observatory.
  • The Oculus camera is supplied with power via an USB connection, as is common with other astronomy CCD cameras. It also has a 12V connector for the built.in heater which protects the camera from dew forming.
  • The software included lets you take a series of images which can then be combined into an AVI video to show the events of the night.

Starlight Xpress even exclusively uses grade 1 quality or better CCD chips for this camera!

Specifications

Capacity


Megapixel
1,45
Sensor type
CCD-chip (Sony ICX205AL)
Antiblooming
yes
Reading noise
7
Full Well Capacity
15000
Dark current
0,1
Bit depth (Bit)
16
Interfaces
USB 2.0
Power supply
12
Power consumption (mA)
1000
Colour camera
no
Quantal efficiency
50% @500nm
Chip - Diagonal (mm)
8
Size of chip (mm)
6,4 x 4,75

Equipment


Filter wheel
no

General


Diameter (mm)
95 (glass dome)
Height (mm)
150

Area of application


Autoguider
no
AllSky, Meteore
yes
Moon & Planets
no
Nebulae & galaxies
no

Product safety

manufacturer: Starlight Xpress Ltd., Unit 3, Brooklands Farm Business Park, Bottle Lane, Binfield, RG42 5QX Berks, http://www.starlight-xpress.co.uk/
resp_person: NIMAX GmbH, Otto-Lilienthal-Str. 9, 86899 Landsberg am Lech, DE, [email protected]

Recommended accessories

Filters (2)
Blocking Filters

Omegon Blocking Filters 1.25''UV / IR cut-off filter

$ 79.00*
Astrophotography (1)

OPT Starlight Xpress Fish Eye 150°

$ 207.00*
Spectroscopy & Photometry (1)
Spectroscope

Paton Hawksley Spectroscope Star Analyser 100

$ 195.00*

*All prices include VAT plus shipping costs.

Starlight Xpress Camera All-Sky Oculus 180 Mono

Example image 2

Starlight Xpress Camera All-Sky Oculus 180 Mono

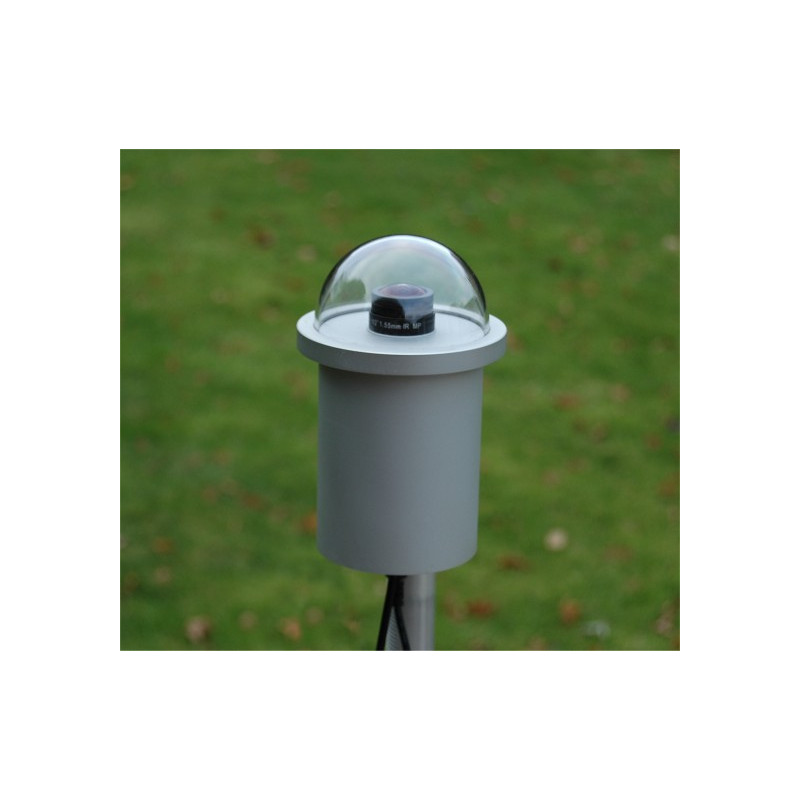

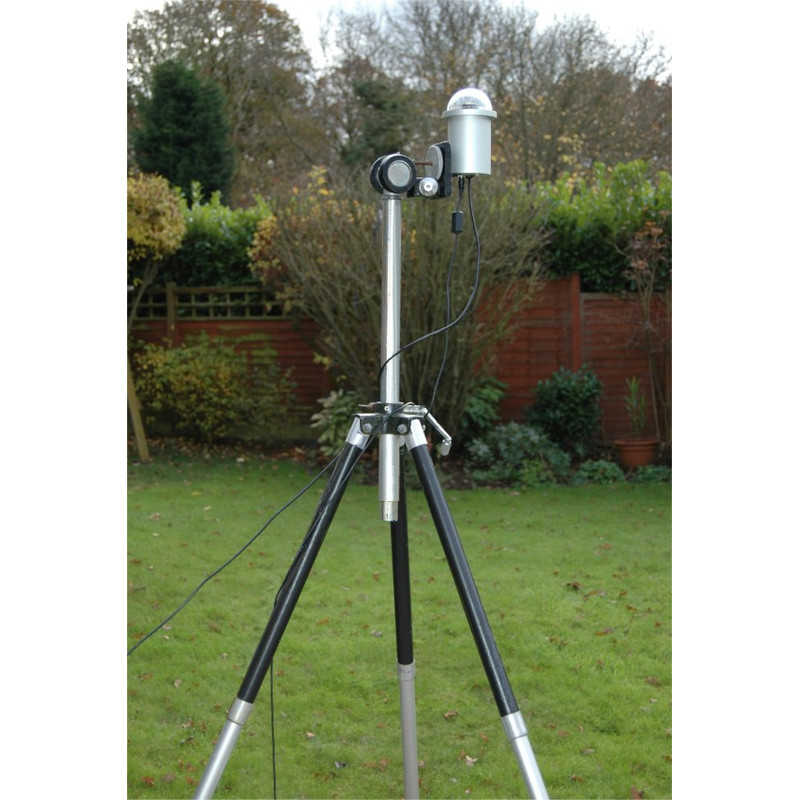

Example of use
Starlight Xpress Camera All-Sky Oculus 180 Mono

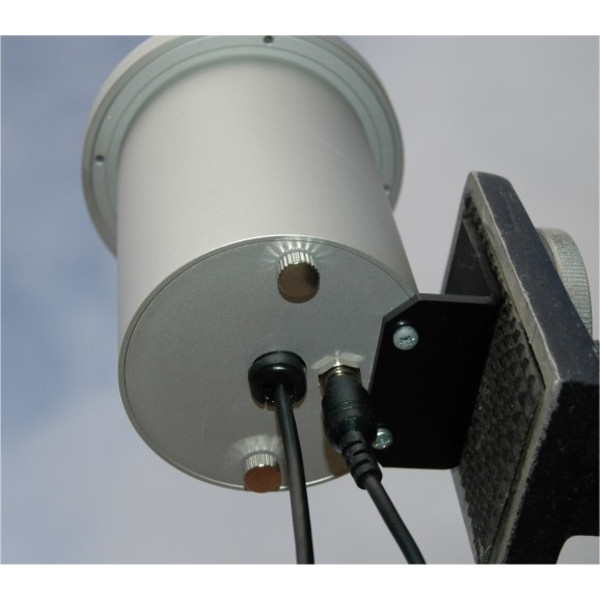

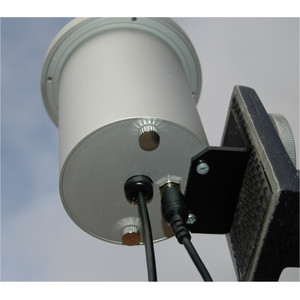

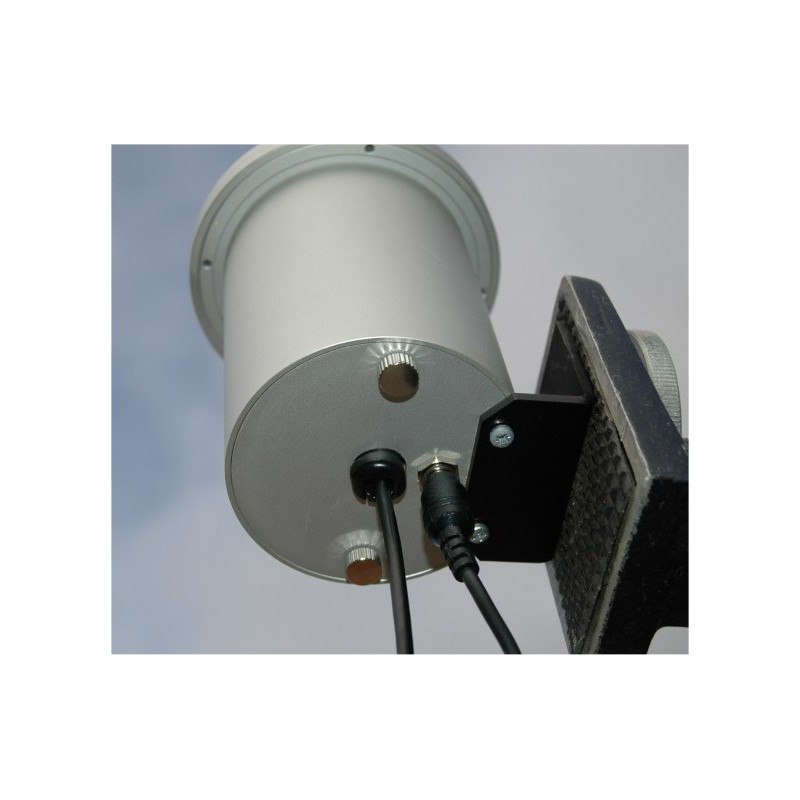

Mount with L-mounting plate for a camera tripod
