Astrophotography > Cameras > Astronomical Cameras > Orion > StarShoot > Orion Camera StarShoot G3 Deep Space Monochrome
Product no.: 21883

Camera StarShoot G3 Deep Space Monochrome

$ 480.00 incl. VAT plus shipping costs
too expensive?
long-term
Product not available anymore + lead time

No delivery possible before christmas
Check alternatives on stock or order a voucher!


Product description

A cooled deep sky camera at a very fair price!

The StarShoot G3 makes astrophotography of faint nebulae and galaxies affordable for those on normal incomes. No other camera in this price range has regulated thermoelectric cooling (Peltier). The cooling lowers the temperature of the camera chip by 10°C below ambient temperature, thus significantly reducing the noise in which the faint structures of nebulae and galaxies would otherwise disappear.

You take single shots with the StarShoot. The camera does not deliver a video stream, unlike 'planetary camera' - StarShoot Solar System - from the same series. The wide range of exposure times lets you take a snapshot of a bright Moon or a faint nebula. The download time for a full-frame image is 2 seconds.

Image acquisition and processing can be carried out using a single software program - Orion Camera Studio software, which can run under Windows XP/Vista/7/8 operating systems. It can be downloaded from the manufacturers, together with all the necessary drivers. The link to this page comes with the camera.

In addition to the 2" and T2 ports, the camera can also be easily connected to the telescope via the included 1.25" nosepiece. The camera comes without an IR filter. See 'Recommended Accessories' for a suitable filter.

In addition, a USB cable and a power cable with a plug for a 'car cigarette lighter' type socket are included in delivery. This plug also allows you to operate the camera using a 'Powertank'.

Specifications

Capacity


Sensor type
CCD-chip (Sony ICX419ALL)
Megapixel
0,4
Resolution Photograph (Pixel)
752x582
Pixel size
8,3
Interfaces
USB 2.0
Bit depth (Bit)
16
Active cooling
yes
Connection (to the telescope)
T2 (M42 x 0,75)
Colour camera
no
Max. exposure time (min)
infinity
Min. exposure time
0,01
Images per second
Single Shot
Dark current
0,01
Max. cooling difference below room temperature
-10
Flange focal distance (mm)
19,00
Full Well Capacity
50000
Reading noise
9
Size of chip (mm)
7,40 x 5,95
Software
Orion Camera Studio Software
Microlenses
yes
Chip - Diagonal (mm)
9,5

Equipment


Filter wheel
no

General


Weight (g)
340
Series
StarShoot

Area of application


Autoguider
yes
Moon & Planets
yes
Nebulae & galaxies
yes

Recommended accessories

Filters (2)
Blocking Filters

Omegon Blocking Filters 1.25''UV / IR cut-off filter

$ 79.00*
Astrophotography (2)

ZWO ADC Atmospheric Dispersion Corrector Mark II

$ 168.00*
Spectroscopy & Photometry (1)
Spectroscope

Paton Hawksley Spectroscope Star Analyser 100

$ 197.00*

*All prices include VAT plus shipping costs.

Orion Camera StarShoot G3 Deep Space Monochrome
Example of use
Orion Camera StarShoot G3 Deep Space Monochrome

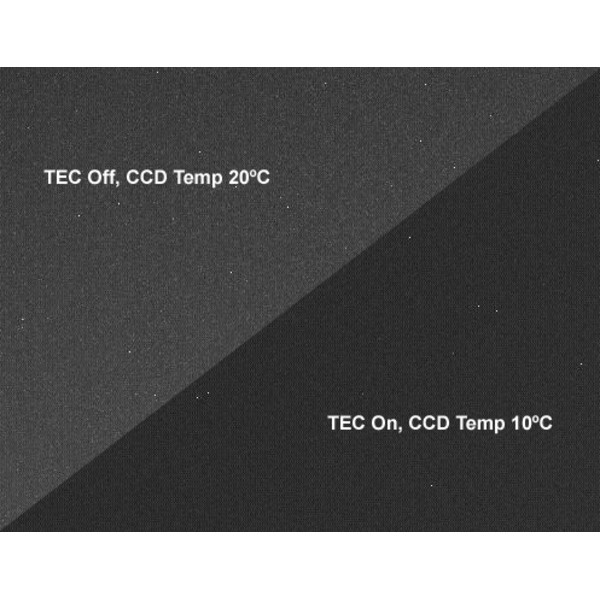

Comparison of two dark-field exposures (dark frames) of 180 seconds exposure time. The cooling is switched off in the upper section of the image, and switched on in the lower section.

Orion Camera StarShoot G3 Deep Space Monochrome

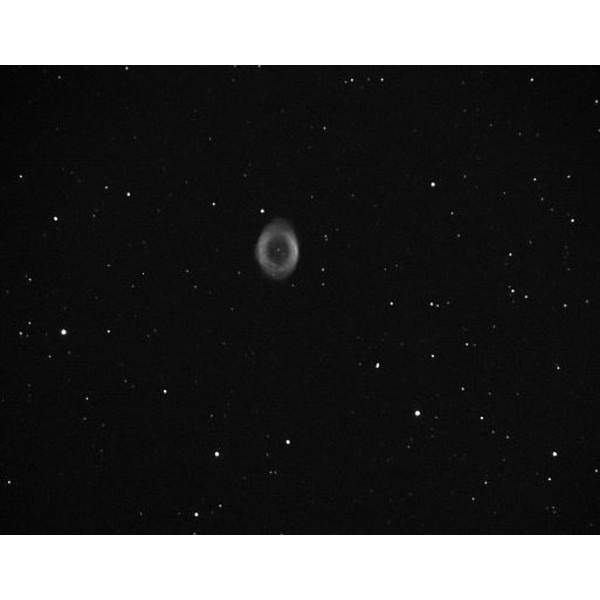

Example: The Ring Nebula, M57 - single shot with a 60 second exposure time.
